4G/LTE - QoS









QCI



QCI stands for QoS Class Identifier. This is a special indentifier defining the quality of packet communication provided by LTE. The range of the class is from 1 to 9.  Each of this class is defined as in the following table (TS 23.203).

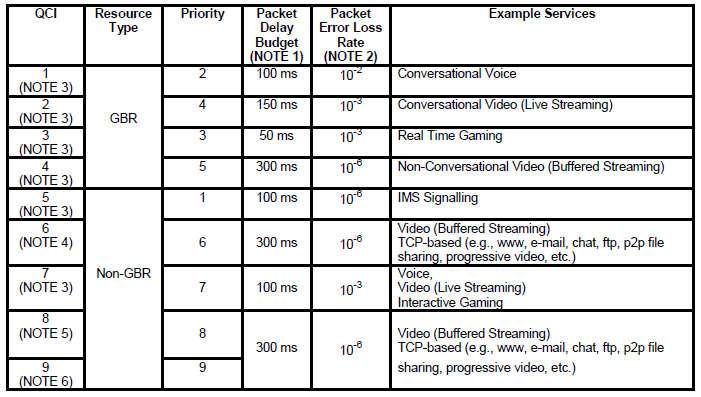

(3GPP -23.203 Table 6.1.7: Standardized QCI characteristics : Release 8)

Note : GBR stands for Guaranteed Bit Rate



From Rel 12, 4 additional QCIs(65,66,69,70) are defined mainly for Public Safety Group Communication as shown below.

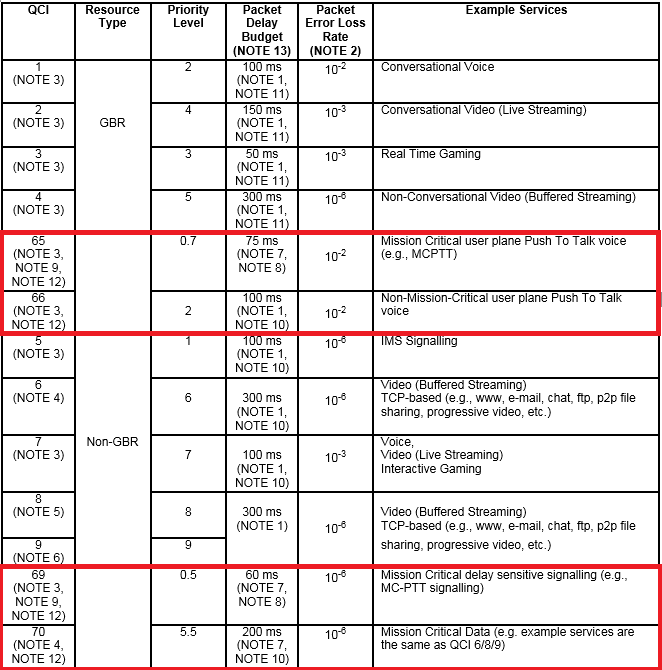

(3GPP -23.203 Table 6.1.7: Standardized QCI characteristics : Release 12)



The specific QCI value is allocated for each UE and is informed to UE via 'Activate default EPS bearer context request' message as shown below. (Followings are just a couple of examples.)



Activate default EPS bearer context request ::= DIVISION

.    ...

    EPS quality of service

        Length: 1

        Quality of Service Class Identifier (QCI): QCI 9 (9)



Activate dedicated EPS bearer context request ::= DIVISION

.    ...

    EPS quality of service

        Length: 5

        Quality of Service Class Identifier (QCI): QCI 1 (1)

        Maximum bit rate for uplink : 1 kbps

        Maximum bit rate for downlink : 1 kbps

        Guaranteed bit rate for uplink : 1 kbps

        Guaranteed bit rate for downlink : 1 kbps
