ULA (Uniform Linear Array)





ULA is the Object that is for design and simulating the set of antenna placed along a line. This is the type of array antenna that are used for MIMO (e.g, LTE MIMO).









Basic Numerical Test





ULA_Basic_01.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txarray = phased.ULA('NumElements',4,'ElementSpacing',lambda/2)

txmipos = getElementPosition(txarray)/lambda



txarraystv = phased.SteeringVector('SensorArray',txarray,'PropagationSpeed',c)



txang = [0 ; 0];

wt = txarraystv(fc,txang)'



txbeam_ang = 0;

txsv = steervec(txmipos,txbeam_ang)



txbeam = wt * txsv





txang = [0 ; 0];

txbeam_ang = 0

txarray =



  phased.ULA with properties:



           Element: [11 phased.IsotropicAntennaElement]

       NumElements: 4

    ElementSpacing: 0.0058

         ArrayAxis: 'y'

             Taper: 1





txmipos =



         0         0         0         0

   -0.7500   -0.2500    0.2500    0.7500

         0         0         0         0





txarraystv =



  phased.SteeringVector with properties:



               SensorArray: [11 phased.ULA]

          PropagationSpeed: 300000000

    IncludeElementResponse: false

       NumPhaseShifterBits: 0





wt =



     1     1     1     1





txsv =



     1

     1

     1

     1





txbeam =



     4







txang = [0 ; 0];

txbeam_ang = -10

txarray =



  phased.ULA with properties:



           Element: [11 phased.IsotropicAntennaElement]

       NumElements: 4

    ElementSpacing: 0.0058

         ArrayAxis: 'y'

             Taper: 1





txmipos =



         0         0         0         0

   -0.7500   -0.2500    0.2500    0.7500

         0         0         0         0





txarraystv =



  phased.SteeringVector with properties:



               SensorArray: [11 phased.ULA]

          PropagationSpeed: 300000000

    IncludeElementResponse: false

       NumPhaseShifterBits: 0





wt =



     1     1     1     1





txsv =



   0.6835 + 0.7300i

   0.9630 + 0.2694i

   0.9630 - 0.2694i

   0.6835 - 0.7300i





txbeam =



    3.2930







txang = [0 ; 0];

txbeam_ang = 10

txarray =



  phased.ULA with properties:



           Element: [11 phased.IsotropicAntennaElement]

       NumElements: 4

    ElementSpacing: 0.0058

         ArrayAxis: 'y'

             Taper: 1





txmipos =



         0         0         0         0

   -0.7500   -0.2500    0.2500    0.7500

         0         0         0         0





txarraystv =



  phased.SteeringVector with properties:



               SensorArray: [11 phased.ULA]

          PropagationSpeed: 300000000

    IncludeElementResponse: false

       NumPhaseShifterBits: 0





wt =



     1     1     1     1





txsv =



   0.6835 - 0.7300i

   0.9630 - 0.2694i

   0.9630 + 0.2694i

   0.6835 + 0.7300i





txbeam =



    3.2930







txang = [-10 ; 0];

txbeam_ang = 0

txarray =



  phased.ULA with properties:



           Element: [11 phased.IsotropicAntennaElement]

       NumElements: 4

    ElementSpacing: 0.0058

         ArrayAxis: 'y'

             Taper: 1





txmipos =



         0         0         0         0

   -0.7500   -0.2500    0.2500    0.7500

         0         0         0         0





txarraystv =



  phased.SteeringVector with properties:



               SensorArray: [11 phased.ULA]

          PropagationSpeed: 300000000

    IncludeElementResponse: false

       NumPhaseShifterBits: 0





wt =



   0.6835 - 0.7300i   0.9630 - 0.2694i   0.9630 + 0.2694i   0.6835 + 0.7300i





txsv =



     1

     1

     1

     1





txbeam =



    3.2930







txang = [10 ; 0];

txbeam_ang = 0

txarray =



  phased.ULA with properties:



           Element: [11 phased.IsotropicAntennaElement]

       NumElements: 4

    ElementSpacing: 0.0058

         ArrayAxis: 'y'

             Taper: 1





txmipos =



         0         0         0         0

   -0.7500   -0.2500    0.2500    0.7500

         0         0         0         0





txarraystv =



  phased.SteeringVector with properties:



               SensorArray: [11 phased.ULA]

          PropagationSpeed: 300000000

    IncludeElementResponse: false

       NumPhaseShifterBits: 0





wt =



   0.6835 + 0.7300i   0.9630 + 0.2694i   0.9630 - 0.2694i   0.6835 - 0.7300i





txsv =



     1

     1

     1

     1





txbeam =



    3.2930







Plotting Radiation Pattern in 2D





ULA_Basic_02.m

c = 3e8;           % propagation speed

fc = 26e9;        % carrier frequency

lambda = c/fc;  % wavelength

NoOfTxAntenna = 4



txarray = phased.ULA('NumElements',NoOfTxAntenna,'ElementSpacing',lambda/2);

txmipos = getElementPosition(txarray)/lambda;



txarraystv = phased.SteeringVector('SensorArray',txarray,'PropagationSpeed',c);



txang = [0 ; 0];

wt = txarraystv(fc,txang)';



txbeam_ang = -90:90;

txbeam_ang_rad = (pi*txbeam_ang)/180;

txbeam = abs(wt*steervec(txmipos,txbeam_ang));

txbeam = txbeam/max(txbeam);

[txbeampos_x,txbeampos_y] = pol2cart(deg2rad(txbeam_ang),txbeam);



hFig = figure(1);

set(hFig, 'Position', [0 0 800 400]);

subplot(1,2,1);

   plot(txbeam_ang,txbeam,'r-');

   xlabel('txbeam ang');ylabel('txbeam');

   set(gca,'xtick',-90:15:90)

   xlim([txbeam_ang(1) txbeam_ang(end)]); ylim([0 1.0]);

subplot(1,2,2);

   polarplot(txbeam_ang_rad,txbeam,'r');

   set(gca,'RTickLabels',[]);





Following examples shows the pattern of an array antenna with different steering angles.



NoOfTxAntenna = 4

txang = [0 ; 0];







NoOfTxAntenna = 4

txang = [10 ; 0];







NoOfTxAntenna = 4

txang = [-30 ; 0];







NoOfTxAntenna = 8

txang = [0 ; 0];







NoOfTxAntenna = 8

txang = [-30 ; 0];





Following examples shows how the shape of an array antenna changes as the number of elements increases.



NoOfTxAntenna = 2

txang = [0 ; 0];





NoOfTxAntenna = 4

txang = [0 ; 0];





NoOfTxAntenna = 8

txang = [0 ; 0];





NoOfTxAntenna = 16

txang = [0 ; 0];







Plotting Radiation Pattern in 3D







ULA_Basic_03.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength

NoOfTxAntenna = 8



txarray = phased.ULA('NumElements',NoOfTxAntenna,'ElementSpacing',lambda/2);



pattern(txarray,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdb')







NoOfTxAntenna = 2







NoOfTxAntenna = 4







NoOfTxAntenna = 8







NoOfTxAntenna = 16







Steering ULA Pattern in 3D





ULA_Basic_04.m

c = 3e8;

fc = 26e9;

lambda = c/fc;



NoOfTxAntenna = 4;



txarray = phased.ULA('NumElements',NoOfTxAntenna,'ElementSpacing',lambda/2);

steer_ang = [15;0];

stv = phased.SteeringVector('SensorArray',txarray);

w = stv(fc,steer_ang);



pattern(txarray,fc,[-180:180],[-90:90],...

        'PropagationSpeed',c,...

        'CoordinateSystem','polar',...

        'Type','powerdb',...

        'Weights',w)



view(90,0);





steer_ang = [-15;0];

 'Type','powerdb'

view(90,0);

steer_ang = [0;0];

 'Type','powerdb'

view(90,0);

steer_ang = [15;0];

 'Type','powerdb'

view(90,0);





steer_ang = [30;0];

 'Type','powerdb'

view(90,0);

steer_ang = [45;0];

 'Type','powerdb'

view(90,0);

steer_ang = [60;0];

 'Type','powerdb'

view(90,0);







steer_ang = [-15;0];

 'Type','power'

view(90,0);

steer_ang = [0;0];

'Type','power'

view(90,0);

steer_ang = [15;0];

'Type','power'

view(90,0);





steer_ang = [30;0];

'Type','power'

view(90,0);

steer_ang = [45;0];

'Type','power'

view(90,0);

steer_ang = [60;0];

'Type','power'

view(90,0);





steer_ang = [30;0];

'Type','power'

view(90,0);

steer_ang = [45;0];

'Type','power'

view(120,0);

steer_ang = [60;0];

'Type','power'

view(90,0);







Steering ULA Pattern in 2D





ULA_Basic_05.m

c = 3e8;

fc = 26e9;

lambda = c/fc;



NoOfTxAntenna = 4;



txarray = phased.ULA('NumElements',NoOfTxAntenna,'ElementSpacing',lambda/2);

steer_ang = [-5;0];

stv = phased.SteeringVector('SensorArray',txarray);

w = stv(fc,steer_ang);



subplot(1,2,1);

pattern(txarray,fc,[-180:180],0,...

        'PropagationSpeed',c,...

        'CoordinateSystem','polar',...

        'Type','powerdb',...

        'Weights',w)



subplot(1,2,2);

pattern(txarray,fc,[-180:180],0,...

    'PropagationSpeed',c,...

    'CoordinateSystem','rectangular',...

    'Type','powerdb', ...

    'Weights',w)





set(gcf, 'Position', [200, 200, 740, 350])

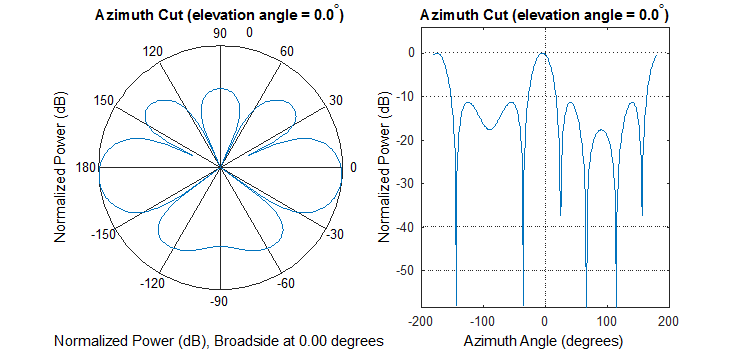

NoOfTxAntenna = 4;

steer_ang = [-5;0];

'Type','powerdB'

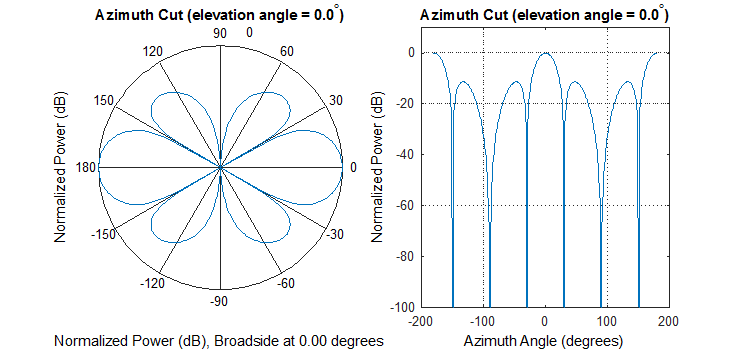

NoOfTxAntenna = 4;

steer_ang = [0;0];

'Type','powerdB'

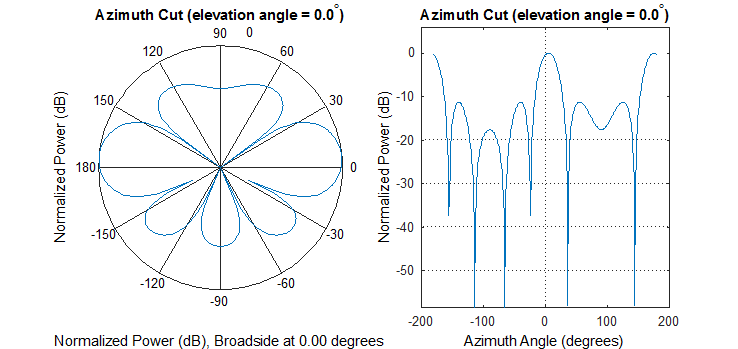

NoOfTxAntenna = 4;

steer_ang = [5;0];

'Type','powerdB'

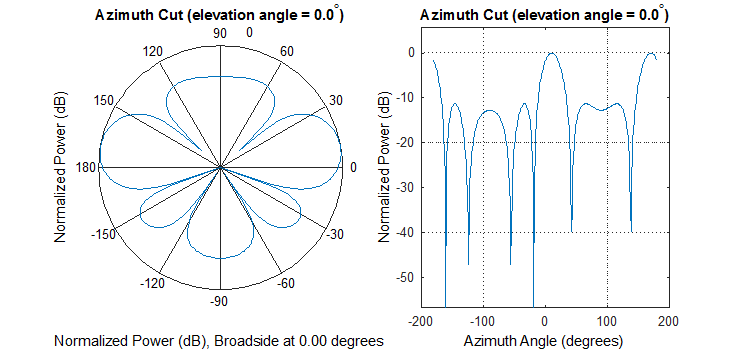

NoOfTxAntenna = 4;

steer_ang = [10;0];

'Type','powerdB'





NoOfTxAntenna = 4;

steer_ang = [15;0];

'Type','powerdB'

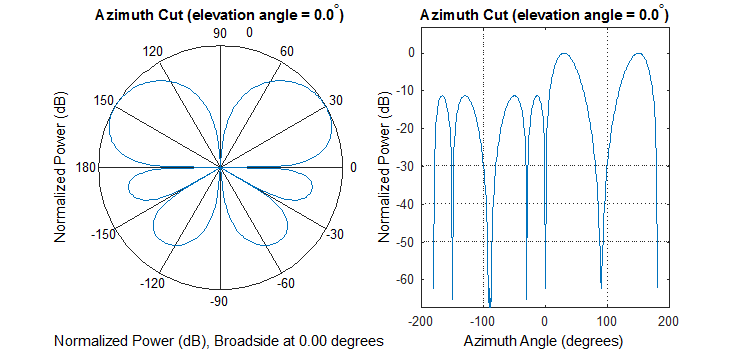

NoOfTxAntenna = 4;

steer_ang = [30;0];

'Type','powerdB'

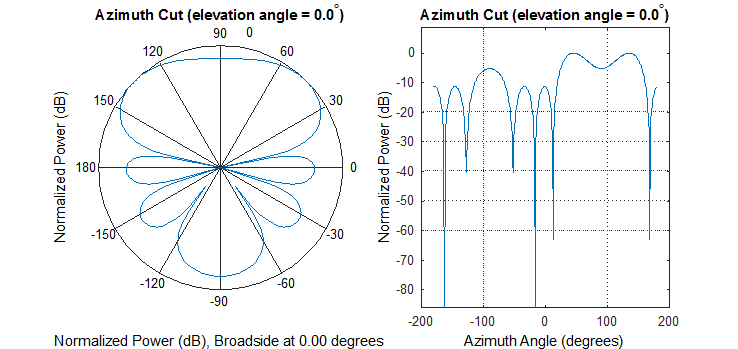

NoOfTxAntenna = 4;

steer_ang = [45;0];

'Type','powerdB'

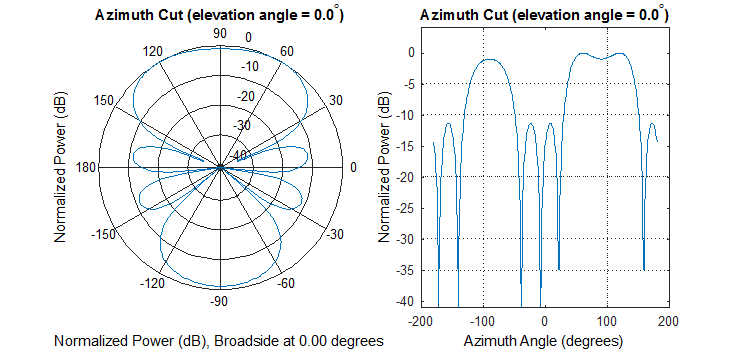

NoOfTxAntenna = 4;

steer_ang = [60;0];

'Type','powerdB'
