Embedded System - Raspberry Pi









Kernel Compile



This tutorial is based on a Raspberry Pi Official Document titled as Kernel Building. Main purpose of this tutorial is to confirm that the procedure on the official document works for the Raspberry Pi that I have and to show some more details (like the screen capture for the result of each step).







Hardware / Software Enviroment

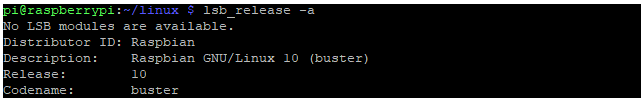

The Hardware/Software(OS) configuration that I used for this tutorial is as follows :









Local Builidng : Compling on Raspberry Pi





Step 0 : Basic Prep

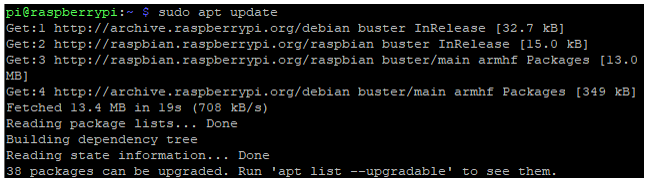

I updated apt to the latest version as shown below.



I am going to download the source code in the following directory.







Step 1 : Install Git and Build Dependencies



The command for this installation is as follows :

    $ sudo apt install git bc bison flex libssl-dev make

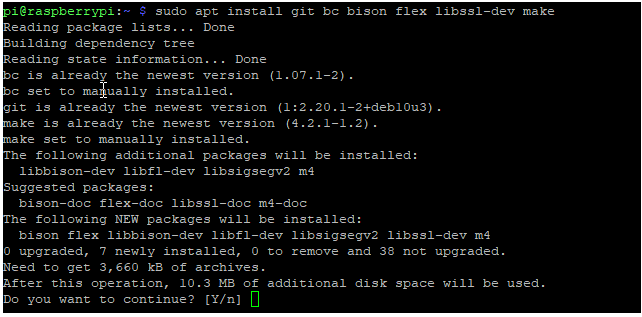

Following is the result of installation. Hit 'Y' (yes) if it ask any question







Step 2 : Download the source code



The command for downloading the source code is as follows.

    $ git clone --depth=1 https://github.com/raspberrypi/linux

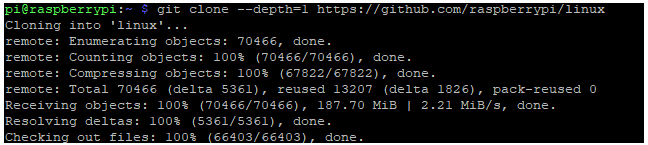

Following is the result of the download

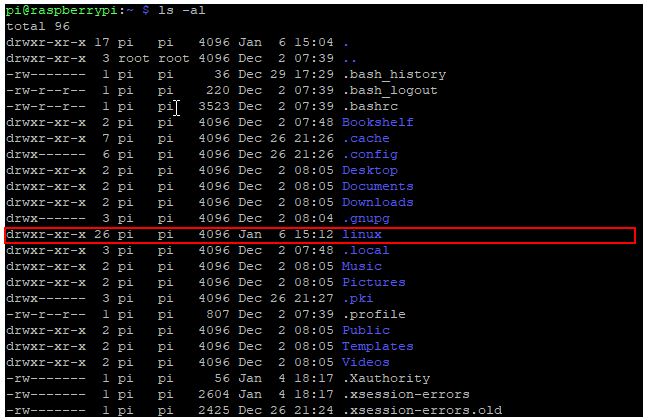

you would see a new directory 'linux' is created as the result of the download.

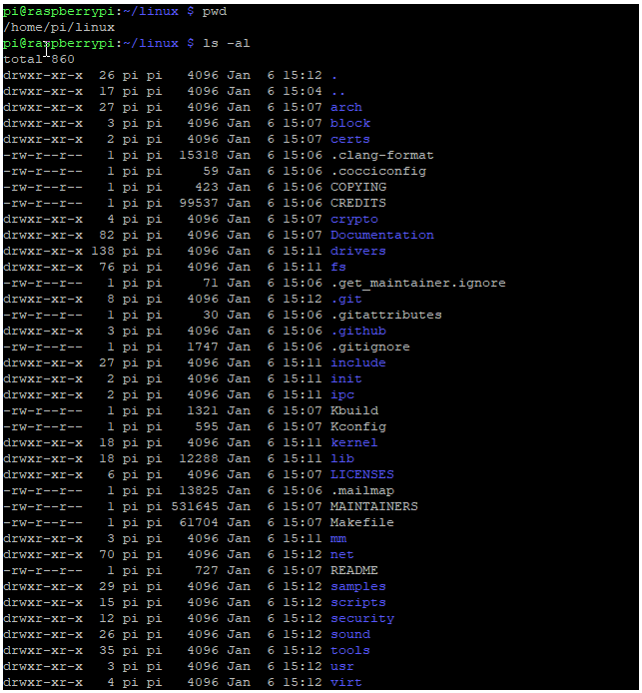

Just for checking, go to the 'linux' directory and see what kind of contents are there.







NOTE : From this point on, all the procedure is done in the directory /home/pi/linux



Step 3 : Define a variable KERNEL



In case of Raspberry Pi 3+ that I am using, you need to do define the variable KERNEL as follows.

    $ KERNEL=kernel7





Step 4 : Apply the default Build Configuration



Command for this step is as follows :

    $ make bcm2708_defconfig

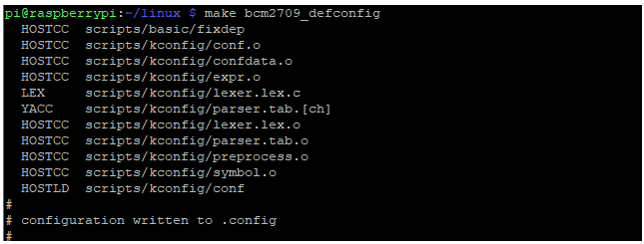

The result of this step would be as follows (NOTE : this is only the initial part of the result.. you would see much longer result than this)





Step 5 : Compile the code



Start compile with the following command (NOTE : This step takes the longest time in the whole process. In my case, it took around 2 hours).

    $ make -j4 zImage modules dtbs





Step 6 : Install Module



Install the module with the following command

    $ sudo make modules_install

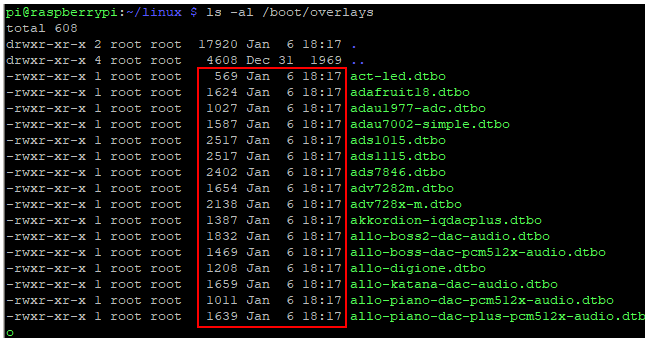

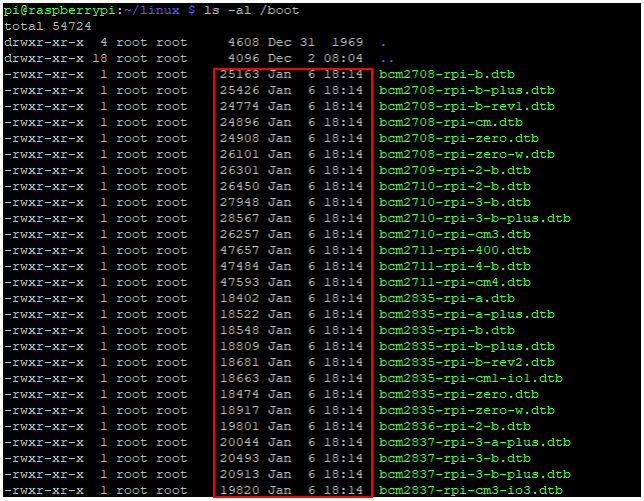

Step 7 : Copy the device trees



Do 3 copy operations to copy all the device tree related files (For the details of Raspberry Pi device tree, refer to this official document).

    $ sudo cp arch/arm/boot/dts/*.dtb /boot/

    $ sudo cp arch/arm/boot/dts/overlays/*.dtb* /boot/overlays/

    $ sudo cp arch/arm/boot/dts/overlays/README /boot/overlays/

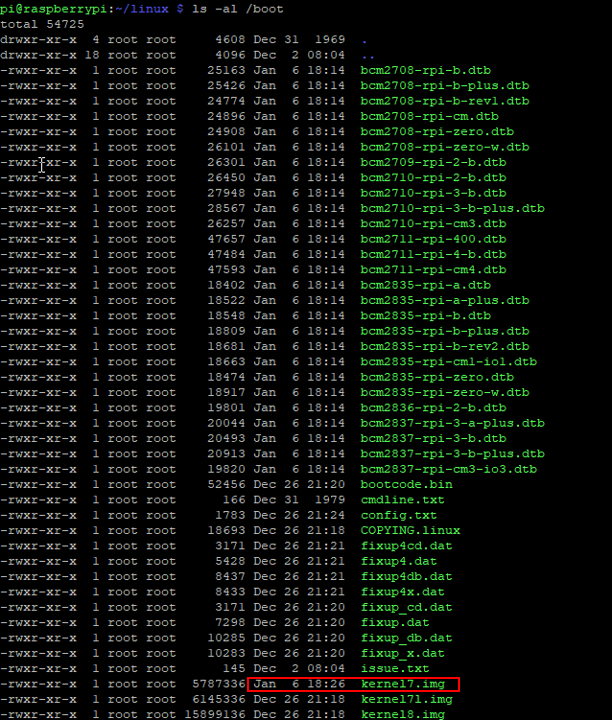

Step 8 : Copy the kernel image file











Step 9 : Reboot and Check









Reference :



[1]
