3G/UMTS-TDSCDMA

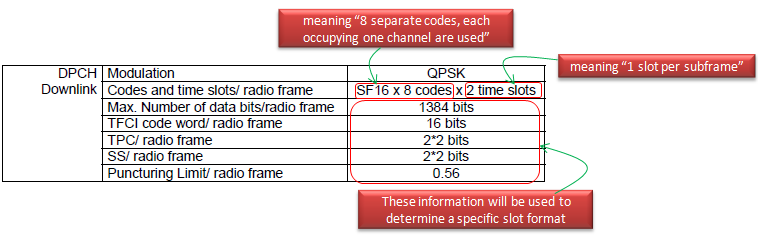

Interactive or background / UL:64 DL: 64 kbps / PS RAB + UL:3.4 DL:3.4 kbps SRBs for DCCH











            | | +-ul-DPCH-Info ::= SEQUENCE [1]

            | |   +-ul-DPCH-PowerControlInfo ::= CHOICE [tdd] OPTIONAL:Exist

            | |   | +-tdd ::= SEQUENCE [1]

            | |   |   +-ul-TargetSIR ::= INTEGER (0..62) [48] OPTIONAL:Exist

            | |   |   +-ul-OL-PC-Signalling ::= CHOICE [individuallySignalled]

            | |   |     +-individuallySignalled ::= SEQUENCE

            | |   |       +-tddOption ::= CHOICE [tdd128]

            | |   |       | +-tdd128 ::= SEQUENCE

            | |   |       |   +-tpc-StepSize ::= INTEGER (1..3) [1]

            | |   |       +-primaryCCPCH-TX-Power ::= INTEGER (6..43) [12]

            | |   +-modeSpecificInfo ::= CHOICE [tdd]

            | |     +-tdd ::= SEQUENCE [110]

            | |       +-ul-TimingAdvance ::= CHOICE [enabled] OPTIONAL:Exist

            | |       | +-enabled ::= SEQUENCE

            | |       |   +-tddOption ::= CHOICE [tdd128]

            | |       |     +-tdd128 ::= SEQUENCE [10]

            | |       |       +-ul-SynchronisationParameters ::= SEQUENCE OPTIONAL:Exist

            | |       |       | +-stepSize ::= INTEGER (1..8) [1]

            | |       |       | +-frequency ::= INTEGER (1..8) [1]

            | |       |       +-synchronisationParameters ::= SEQUENCE OPTIONAL:Omit

            | |       +-ul-CCTrCHList ::= SEQUENCE OF SIZE(1..maxCCTrCH[8]) [1] OPTIONAL:Exist

            | |       | +-UL-CCTrCH-r4 ::= SEQUENCE [11]

            | |       |   +-tfcs-ID ::= INTEGER (1..8) [1] OPTIONAL:Exist

            | |       |   +-ul-TargetSIR ::= INTEGER (0..62) [48]

            | |       |   +-timeInfo ::= SEQUENCE [10]

            | |       |   | +-activationTime ::= INTEGER (0..255) [0] OPTIONAL:Exist

            | |       |   | +-durationTimeInfo ::= INTEGER OPTIONAL:Omit

            | |       |   +-commonTimeslotInfo ::= SEQUENCE [11] OPTIONAL:Exist

            | |       |   | +-secondInterleavingMode ::= ENUMERATED [frameRelated]

            | |       |   | +-tfci-Coding ::= ENUMERATED [tfci-bits-16] OPTIONAL:Exist

            | |       |   | +-puncturingLimit ::= ENUMERATED [pl0-56]

            | |       |   | +-repetitionPeriodAndLength ::= CHOICE [repetitionPeriod1] OPTIONAL:Exist

            | |       |   |   +-repetitionPeriod1 ::= NULL

            | |       |   +-tddOption ::= CHOICE [tdd128]

            | |       |     +-tdd128 ::= SEQUENCE [1]

            | |       |       +-ul-CCTrCH-TimeslotsCodes ::= SEQUENCE OPTIONAL:Exist

            | |       |         +-dynamicSFusage ::= BOOLEAN [FALSE]

            | |       |         +-firstIndividualTimeslotInfo ::= SEQUENCE [0]

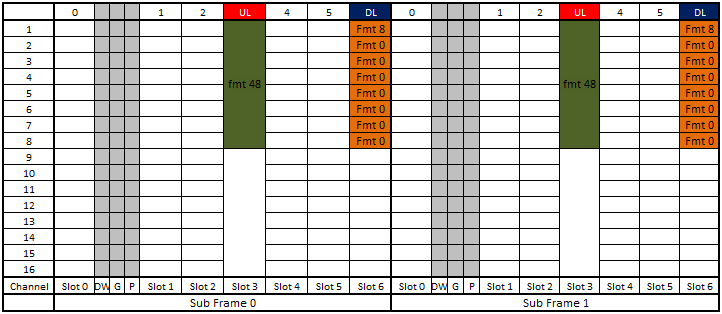

            | |       |         | +-timeslotNumber ::= INTEGER (0..6) [3]

            | |       |         | +-tfci-Existence ::= BOOLEAN [TRUE]

            | |       |         | +-midambleShiftAndBurstType ::= SEQUENCE

            | |       |         | | +-midambleAllocationMode ::= CHOICE [defaultMidamble]

            | |       |         | | | +-defaultMidamble ::= NULL

            | |       |         | | +-midambleConfiguration ::= INTEGER (1..8) [8]

            | |       |         | +-modulation ::= ENUMERATED [mod-QPSK]

            | |       |         | +-ss-TPC-Symbols ::= ENUMERATED [one]

            | |       |         | +-additionalSS-TPC-Symbols ::= INTEGER OPTIONAL:Omit

            | |       |         +-ul-TS-ChannelisationCodeList ::= SEQUENCE OF SIZE(1..2) [1]

            | |       |         | +-UL-TS-ChannelisationCode ::= ENUMERATED [cc2-1]

            | |       |         +-moreTimeslots ::= CHOICE [noMore]

            | |       |           +-noMore ::= NULL



            | +-dl-InformationPerRL-List ::= SEQUENCE OF SIZE(1..maxRL[8]) [1] OPTIONAL:Exist

            |   +-DL-InformationPerRL-r4 ::= SEQUENCE [100]

            |     +-modeSpecificInfo ::= CHOICE [tdd]

            |     | +-tdd ::= CHOICE [tdd]

            |     |   +-tdd ::= SEQUENCE [1]

            |     |     +-tddOption ::= CHOICE [tdd128]

            |     |     | +-tdd128 ::= SEQUENCE

            |     |     |   +-tstd-Indicator ::= BOOLEAN [FALSE]

            |     |     +-cellParametersID ::= INTEGER (0..127) [127] OPTIONAL:Exist

            |     |     +-sctd-Indicator ::= BOOLEAN [FALSE]

            |     +-dl-DPCH-InfoPerRL ::= CHOICE [tdd] OPTIONAL:Exist

            |     | +-tdd ::= SEQUENCE [10]

            |     |   +-dl-CCTrChListToEstablish ::= SEQUENCE OF SIZE(1..maxCCTrCH[8]) [1] OPTIONAL:Exist

            |     |   | +-DL-CCTrCh-r4 ::= SEQUENCE [110]

            |     |   |   +-tfcs-ID ::= INTEGER (1..8) [1] OPTIONAL:Exist

            |     |   |   +-timeInfo ::= SEQUENCE [10]

            |     |   |   | +-activationTime ::= INTEGER (0..255) [0] OPTIONAL:Exist

            |     |   |   | +-durationTimeInfo ::= INTEGER OPTIONAL:Omit

            |     |   |   +-commonTimeslotInfo ::= SEQUENCE [11] OPTIONAL:Exist

            |     |   |   | +-secondInterleavingMode ::= ENUMERATED [frameRelated]

            |     |   |   | +-tfci-Coding ::= ENUMERATED [tfci-bits-16] OPTIONAL:Exist

            |     |   |   | +-puncturingLimit ::= ENUMERATED [pl0-56]

            |     |   |   | +-repetitionPeriodAndLength ::= CHOICE [repetitionPeriod1] OPTIONAL:Exist

            |     |   |   |   +-repetitionPeriod1 ::= NULL

            |     |   |   +-tddOption ::= CHOICE [tdd128]

            |     |   |   | +-tdd128 ::= SEQUENCE [1]

            |     |   |   |   +-dl-CCTrCH-TimeslotsCodes ::= SEQUENCE OPTIONAL:Exist

            |     |   |   |     +-firstIndividualTimeslotInfo ::= SEQUENCE [0]

            |     |   |   |     | +-timeslotNumber ::= INTEGER (0..6) [6]

            |     |   |   |     | +-tfci-Existence ::= BOOLEAN [TRUE]

            |     |   |   |     | +-midambleShiftAndBurstType ::= SEQUENCE

            |     |   |   |     | | +-midambleAllocationMode ::= CHOICE [defaultMidamble]

            |     |   |   |     | | | +-defaultMidamble ::= NULL

            |     |   |   |     | | +-midambleConfiguration ::= INTEGER (1..8) [4]

            |     |   |   |     | +-modulation ::= ENUMERATED [mod-QPSK]

            |     |   |   |     | +-ss-TPC-Symbols ::= ENUMERATED [one]

            |     |   |   |     | +-additionalSS-TPC-Symbols ::= INTEGER OPTIONAL:Omit

            |     |   |   |     +-dl-TS-ChannelisationCodesShort ::= SEQUENCE

            |     |   |   |     | +-codesRepresentation ::= CHOICE [bitmap]

            |     |   |   |     |   +-bitmap ::= BIT STRING  [0000000011111111]

            |     |   |   |     +-moreTimeslots ::= CHOICE [noMore]

            |     |   |   |       +-noMore ::= NULL
