LTE to NR Handover
LTE to NR handover is a process in which UE switches the cell from LTE to NR cell in connected mode. It is a type of InterRAT handover since the cell change happens between two different RAT(Radio Access Technology).

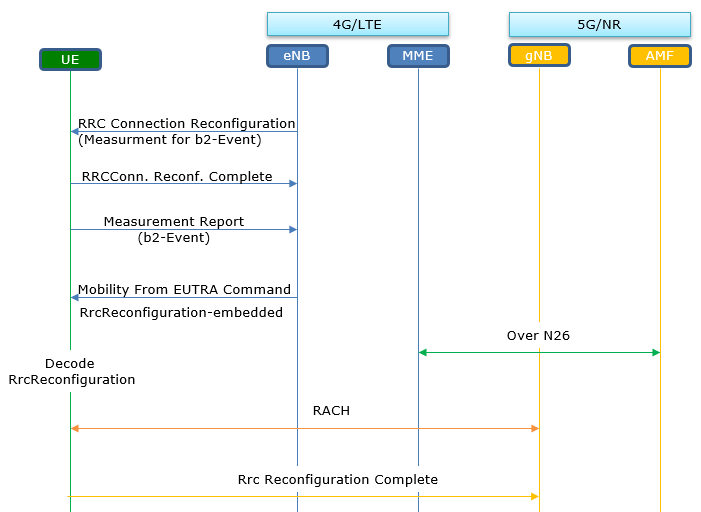

Procedure of Handover (LTE to NR handover)
Overall logic is simple and this process are the same (or at least very similar) in every technology.
Following is overall description of this flow : i) eNB send RrcConnectionReconfiguration with measurement configuration. The detailed configuration would vary depending on eNB, but it is highy likely to have B2-NR even to maket it sure that both eNB and gNB power meet the power requirement for handover. ii) UE sends Measurement Report iii) (If eNB get the required MeasurementReport), eNB sends MobilityFromEUTRACommand. MobilityFromEUTRACommand commands NR RrcReconfiguration message embedded in it. iv) UE decodes the RrcReconfiguration contained in MobilityFromEUTRACommand , switch cell to gNB and perform RACH process to gNB. v) (If RACH is properly completed), UE sends RrcReconfiguration to gNB.
A typical Protocol Sequence

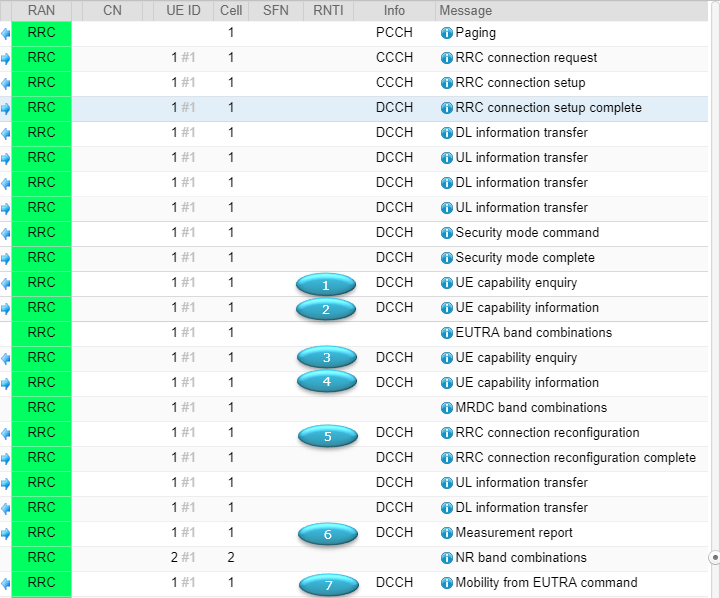

Following log is from Amarisoft Callbox as eNB/gNB and Amarisoft UEsim as a DUT (This is Callbox Log)
NOTE : If you want to see the contents of full log with Amarisoft Log viewer, go to LogAnalysis section and click on 'Sample Log' in this tutorial of Amarisoft TechAcademy.

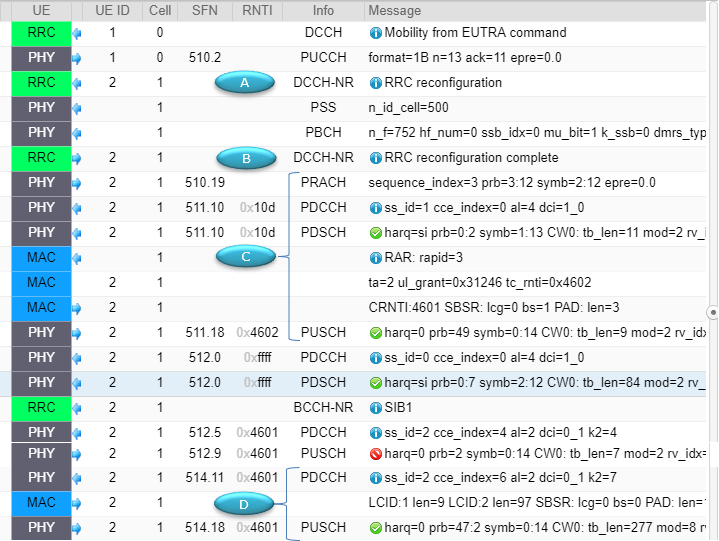

Following log is from Amarisoft Callbox as eNB/gNB and Amarisoft UEsim as a DUT (This is UEsim Log)
[1] UE Capability Enquiry
{ message c1: ueCapabilityEnquiry: { rrc-TransactionIdentifier 0, criticalExtensions c1: ueCapabilityEnquiry-r8: { ue-CapabilityRequest { eutra }, nonCriticalExtension { nonCriticalExtension { requestedFrequencyBands-r11 { 1 }, nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { requestedFreqBandsNR-MRDC-r15 { bandInformationEUTRA: { bandEUTRA 1 }, bandInformationNR: { bandNR 78 } }, nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { rrc-SegAllowed-r16 enabled } } } }
[2] UE Capability Information
message c1: ueCapabilityInformation: { rrc-TransactionIdentifier 0, criticalExtensions c1: ueCapabilityInformation-r8: { ue-CapabilityRAT-ContainerList { { rat-Type eutra, ueCapabilityRAT-Container { accessStratumRelease rel15, ue-Category 4, pdcp-Parameters { supportedROHC-Profiles { profile0x0001-r15 TRUE, profile0x0002-r15 TRUE, profile0x0003-r15 FALSE, profile0x0004-r15 TRUE, profile0x0006-r15 FALSE, profile0x0101-r15 FALSE, profile0x0102-r15 FALSE, profile0x0103-r15 FALSE, profile0x0104-r15 FALSE } }, phyLayerParameters { ue-TxAntennaSelectionSupported FALSE, ue-SpecificRefSigsSupported TRUE }, rf-Parameters { supportedBandListEUTRA { { bandEUTRA 1, halfDuplex FALSE } } }, measParameters { bandListEUTRA { { interFreqBandList { { interFreqNeedForGaps TRUE } } } } }, featureGroupIndicators '5E001002'H /* 2: PUCCH 2a/2b, abs TPC, RB alloc type 1 for PDSCH, Periodic CQI/PMI/RI reporting on PUCCH: Modes 2-0 and 2-1 4: Short DRX cycle 5: Long DRX cycle, DRX Mac CE 6: Prioritized bit rate 7: RLC UM 20: SRB1 and SRB2 for DCCH + 8x DRB 31: MFBI */, interRAT-Parameters { }, nonCriticalExtension { phyLayerParameters-v920 { enhancedDualLayerFDD-r9 supported, enhancedDualLayerTDD-r9 supported }, interRAT-ParametersGERAN-v920 { }, csg-ProximityIndicationParameters-r9 { }, neighCellSI-AcquisitionParameters-r9 { }, son-Parameters-r9 { }, nonCriticalExtension { lateNonCriticalExtension { nonCriticalExtension { nonCriticalExtension { phyLayerParameters-v9d0 { tm5-FDD-r9 supported, tm5-TDD-r9 supported } } } }, nonCriticalExtension { ue-Category-v1020 6, phyLayerParameters-v1020 { tm9-With-8Tx-FDD-r10 supported, crossCarrierScheduling-r10 supported, multiClusterPUSCH-WithinCC-r10 supported, nonContiguousUL-RA-WithinCC-List-r10 { { nonContiguousUL-RA-WithinCC-Info-r10 supported } } }, rf-Parameters-v1020 { supportedBandCombination-r10 { { { bandEUTRA-r10 1, bandParametersUL-r10 { { ca-BandwidthClassUL-r10 a } }, bandParametersDL-r10 { { ca-BandwidthClassDL-r10 a, supportedMIMO-CapabilityDL-r10 twoLayers } } } } } }, nonCriticalExtension { rf-Parameters-v1060 { supportedBandCombinationExt-r10 { { } } }, nonCriticalExtension { nonCriticalExtension { pdcp-Parameters-v1130 { pdcp-SN-Extension-r11 supported }, phyLayerParameters-v1130 { multiACK-CSI-Reporting-r11 supported, tdd-SpecialSubframe-r11 supported }, rf-Parameters-v1130 { }, measParameters-v1130 { }, interRAT-ParametersCDMA2000-v1130 { }, otherParameters-r11 { powerPrefInd-r11 supported }, nonCriticalExtension { nonCriticalExtension { rf-Parameters-v1180 { freqBandRetrieval-r11 supported, requestedBands-r11 { 1 } }, nonCriticalExtension { nonCriticalExtension { rf-Parameters-v1250 { supportedBandListEUTRA-v1250 { { dl-256QAM-r12 supported } } }, rlc-Parameters-r12 { extended-RLC-LI-Field-r12 supported }, nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { pdcp-Parameters-v1310 { pdcp-SN-Extension-18bits-r13 supported }, rlc-Parameters-v1310 { extendedRLC-SN-SO-Field-r13 supported }, mac-Parameters-v1310 { extendedMAC-LengthField-r13 supported, extendedLongDRX-r13 supported }, interRAT-ParametersWLAN-r13 { }, wlan-IW-Parameters-v1310 { }, lwip-Parameters-r13 { }, nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { ce-Parameters-v1350 { }, nonCriticalExtension { nonCriticalExtension { phyLayerParameters-v1430 { }, rlc-Parameters-v1430 { extendedPollByte-r14 supported }, otherParameters-v1430 { }, ce-Parameters-v1430 { }, nonCriticalExtension { lwa-Parameters-v1440 { }, mac-Parameters-v1440 { }, nonCriticalExtension { otherParameters-v1450 { }, nonCriticalExtension { otherParameters-v1460 { }, nonCriticalExtension { irat-ParametersNR-r15 { en-DC-r15 supported, eventB2-r15 supported, supportedBandListEN-DC-r15 { { bandNR-r15 78 } } }, featureSetsEUTRA-r15 { featureSetsDL-r15 { { featureSetPerCC-ListDL-r15 { 0 } } }, featureSetsDL-PerCC-r15 { { supportedMIMO-CapabilityDL-MRDC-r15 twoLayers } }, featureSetsUL-r15 { { featureSetPerCC-ListUL-r15 { 0 } } }, featureSetsUL-PerCC-r15 { { } } }, pdcp-ParametersNR-r15 { rohc-Profiles-r15 { profile0x0001-r15 TRUE, profile0x0002-r15 TRUE, profile0x0003-r15 FALSE, profile0x0004-r15 TRUE, profile0x0006-r15 FALSE, profile0x0101-r15 FALSE, profile0x0102-r15 FALSE, profile0x0103-r15 FALSE, profile0x0104-r15 FALSE }, rohc-ProfilesUL-Only-r15 { profile0x0006-r15 FALSE }, outOfOrderDelivery-r15 supported, sn-SizeLo-r15 supported, ims-VoiceOverNR-PDCP-MCG-Bearer-r15 supported, ims-VoiceOverNR-PDCP-SCG-Bearer-r15 supported }, nonCriticalExtension { measParameters-v1520 { }, nonCriticalExtension { neighCellSI-AcquisitionParameters-v1530 { reportCGI-NR-EN-DC-r15 supported, reportCGI-NR-NoEN-DC-r15 supported }, nonCriticalExtension { otherParameters-v1540 { }, irat-ParametersNR-v1540 { eutra-EPC-HO-ToNR-TDD-FR1-r15 supported, ims-VoiceOverNR-FR1-r15 supported, sa-NR-r15 supported, supportedBandListNR-SA-r15 { { bandNR-r15 78 } } }, nonCriticalExtension { phyLayerParameters-v1550 { }, mac-Parameters-v1550 { eLCID-Support-r15 supported }, fdd-Add-UE-EUTRA-Capabilities-v1550 { neighCellSI-AcquisitionParameters-v1550 { eutra-CGI-Reporting-ENDC-r15 supported } }, tdd-Add-UE-EUTRA-Capabilities-v1550 { } }
[3] UE Capability Enquiry
{ message c1: ueCapabilityEnquiry: { rrc-TransactionIdentifier 0, criticalExtensions c1: ueCapabilityEnquiry-r8: { ue-CapabilityRequest { nr, eutra-nr }, nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { requestedFreqBandsNR-MRDC-r15 { bandInformationEUTRA: { bandEUTRA 1 }, bandInformationNR: { bandNR 78 } }, nonCriticalExtension { nonCriticalExtension { requestedCapabilityNR-r15 { }, nonCriticalExtension { nonCriticalExtension { rrc-SegAllowed-r16 enabled } } }
[4] UE Capability Information
{ message c1: ueCapabilityInformation: { rrc-TransactionIdentifier 0, criticalExtensions c1: ueCapabilityInformation-r8: { ue-CapabilityRAT-ContainerList { { rat-Type nr, ueCapabilityRAT-Container { accessStratumRelease rel15, pdcp-Parameters { supportedROHC-Profiles { profile0x0000 TRUE, profile0x0001 TRUE, profile0x0002 TRUE, profile0x0003 FALSE, profile0x0004 TRUE, profile0x0006 FALSE, profile0x0101 FALSE, profile0x0102 FALSE, profile0x0103 FALSE, profile0x0104 FALSE }, maxNumberROHC-ContextSessions cs16, outOfOrderDelivery supported, shortSN supported }, rlc-Parameters { am-WithShortSN supported, um-WithShortSN supported, um-WithLongSN supported }, mac-Parameters { mac-ParametersXDD-Diff { longDRX-Cycle supported, shortDRX-Cycle supported } }, phy-Parameters { phy-ParametersCommon { dynamicHARQ-ACK-Codebook supported, dynamicBetaOffsetInd-HARQ-ACK-CSI supported, ra-Type0-PUSCH supported, dynamicSwitchRA-Type0-1-PDSCH supported, dynamicSwitchRA-Type0-1-PUSCH supported, pdsch-MappingTypeA supported, pdsch-MappingTypeB supported, interleavingVRB-ToPRB-PDSCH supported, pusch-RepetitionMultiSlots supported, pdsch-RepetitionMultiSlots supported, configuredUL-GrantType1 supported, configuredUL-GrantType2 supported, rateMatchingResrcSetSemi-Static supported, rateMatchingResrcSetDynamic supported, bwp-SwitchingDelay type1, rateMatchingCtrlResrcSetDynamic supported, maxLayersMIMO-Indication supported }, phy-ParametersFRX-Diff { twoFL-DMRS '11'B, supportedDMRS-TypeDL type1And2, supportedDMRS-TypeUL type1And2, onePortsPTRS '11'B, pucch-F2-WithFH supported, pucch-F3-WithFH supported, pucch-F4-WithFH supported, pusch-HalfPi-BPSK supported, pucch-F3-4-HalfPi-BPSK supported, mux-SR-HARQ-ACK-CSI-PUCCH-OncePerSlot { sameSymbol supported }, mux-SR-HARQ-ACK-PUCCH supported, dl-SchedulingOffset-PDSCH-TypeA supported, dl-SchedulingOffset-PDSCH-TypeB supported, ul-SchedulingOffset supported, dl-64QAM-MCS-TableAlt supported, ul-64QAM-MCS-TableAlt supported, cqi-TableAlt supported, oneFL-DMRS-TwoAdditionalDMRS-UL supported, twoFL-DMRS-TwoAdditionalDMRS-UL supported, oneFL-DMRS-ThreeAdditionalDMRS-UL supported }, phy-ParametersFR1 { pdsch-256QAM-FR1 supported } }, rf-Parameters { supportedBandListNR { { bandNR 78, mimo-ParametersPerBand { codebookParameters { type1 { singlePanel { supportedCSI-RS-ResourceList { { maxNumberTxPortsPerResource p32, maxNumberResourcesPerBand 1, totalNumberTxPortsPerBand 32 } }, modes mode1andMode2, maxNumberCSI-RS-PerResourceSet 1 } } }, csi-RS-IM-ReceptionForFeedback { maxConfigNumberNZP-CSI-RS-PerCC 8, maxConfigNumberPortsAcrossNZP-CSI-RS-PerCC 32, maxConfigNumberCSI-IM-PerCC n4, maxNumberSimultaneousNZP-CSI-RS-PerCC 8, totalNumberPortsSimultaneousNZP-CSI-RS-PerCC 64 }, csi-ReportFramework { maxNumberPeriodicCSI-PerBWP-ForCSI-Report 1, maxNumberAperiodicCSI-PerBWP-ForCSI-Report 1, maxNumberSemiPersistentCSI-PerBWP-ForCSI-Report 0, maxNumberPeriodicCSI-PerBWP-ForBeamReport 1, maxNumberAperiodicCSI-PerBWP-ForBeamReport 1, maxNumberAperiodicCSI-triggeringStatePerCC n3, maxNumberSemiPersistentCSI-PerBWP-ForBeamReport 0, simultaneousCSI-ReportsPerCC 5 } }, bwp-WithoutRestriction supported, bwp-SameNumerology upto4, pusch-256QAM supported, rateMatchingLTE-CRS supported } }, supportedBandCombinationList { { bandList { nr: { bandNR 78, ca-BandwidthClassDL-NR a, ca-BandwidthClassUL-NR a } }, featureSetCombination 0 } }, appliedFreqBandListFilter { bandInformationEUTRA: { bandEUTRA 1 }, bandInformationNR: { bandNR 78 } }, supportedBandCombinationList-v1540 { { bandList-v1540 { { srs-TxSwitch { supportedSRS-TxPortSwitch notSupported } } } } } }, measAndMobParameters { measAndMobParametersCommon { supportedGapPattern '1111111111111111111111'B, eventB-MeasAndReport supported, eutra-CGI-Reporting supported, nr-CGI-Reporting-ENDC supported }, measAndMobParametersXDD-Diff { eventA-MeasAndReport supported, handoverLTE-EPC supported }, measAndMobParametersFRX-Diff { ss-SINR-Meas supported, handoverLTE-EPC supported } }, featureSets { featureSetsDownlink { { featureSetListPerDownlinkCC { 1 } } }, featureSetsDownlinkPerCC { { supportedSubcarrierSpacingDL kHz30, supportedBandwidthDL fr1: mhz20, maxNumberMIMO-LayersPDSCH twoLayers, supportedModulationOrderDL qam256 } }, featureSetsUplink { { featureSetListPerUplinkCC { 1 }, supportedSRS-Resources { maxNumberAperiodicSRS-PerBWP n16, maxNumberAperiodicSRS-PerBWP-PerSlot 6, maxNumberPeriodicSRS-PerBWP n16, maxNumberPeriodicSRS-PerBWP-PerSlot 6, maxNumberSemiPersistentSRS-PerBWP n16, maxNumberSemiPersistentSRS-PerBWP-PerSlot 6, maxNumberSRS-Ports-PerResource n1 } } }, featureSetsUplinkPerCC { { supportedSubcarrierSpacingUL kHz30, supportedBandwidthUL fr1: mhz20, mimo-CB-PUSCH { maxNumberMIMO-LayersCB-PUSCH oneLayer, maxNumberSRS-ResourcePerSet 1 }, supportedModulationOrderUL qam256 } }, featureSetsDownlink-v1540 { { oneFL-DMRS-TwoAdditionalDMRS-DL supported, additionalDMRS-DL-Alt supported, twoFL-DMRS-TwoAdditionalDMRS-DL supported, oneFL-DMRS-ThreeAdditionalDMRS-DL supported } } }, featureSetCombinations { { { nr: { downlinkSetNR 1, uplinkSetNR 1 } } } }, nonCriticalExtension { interRAT-Parameters { eutra { supportedBandListEUTRA { 1 } } } } } }, { rat-Type eutra-nr, ueCapabilityRAT-Container { rf-ParametersMRDC { supportedBandCombinationList { { bandList { eutra: { bandEUTRA 1, ca-BandwidthClassDL-EUTRA a, ca-BandwidthClassUL-EUTRA a }, nr: { bandNR 78, ca-BandwidthClassDL-NR a, ca-BandwidthClassUL-NR a } }, featureSetCombination 0, mrdc-Parameters { simultaneousRxTxInterBandENDC supported, intraBandENDC-Support both } } }, appliedFreqBandListFilter { bandInformationEUTRA: { bandEUTRA 1 }, bandInformationNR: { bandNR 78 } }, supportedBandCombinationList-v1540 { { bandList-v1540 { { }, { srs-TxSwitch { supportedSRS-TxPortSwitch notSupported } } } } } }, featureSetCombinations { { { eutra: { downlinkSetEUTRA 1, uplinkSetEUTRA 1 } }, { nr: { downlinkSetNR 1, uplinkSetNR 1 } } }
[5] RRCConnectionReconfiguration
{ message c1: rrcConnectionReconfiguration: { rrc-TransactionIdentifier 0, criticalExtensions c1: rrcConnectionReconfiguration-r8: { measConfig { measObjectToAddModList { { measObjectId 1, measObject measObjectEUTRA: { carrierFreq 300, allowedMeasBandwidth mbw100, presenceAntennaPort1 TRUE, neighCellConfig '01'B } }, { measObjectId 2, measObject measObjectNR-r15: { carrierFreq-r15 632544, rs-ConfigSSB-r15 { measTimingConfig-r15 { periodicityAndOffset-r15 sf20-r15: 0, ssb-Duration-r15 sf1 }, subcarrierSpacingSSB-r15 kHz30 }, quantityConfigSet-r15 1, bandNR-r15 setup: 78 } } }, reportConfigToAddModList { { reportConfigId 1, reportConfig reportConfigEUTRA: { triggerType event: { eventId eventA1: { a1-Threshold threshold-RSRP: 85 }, hysteresis 10, timeToTrigger ms320 }, triggerQuantity rsrp, reportQuantity both, maxReportCells 1, reportInterval ms120, reportAmount r1 } }, { reportConfigId 2, reportConfig reportConfigEUTRA: { triggerType event: { eventId eventA2: { a2-Threshold threshold-RSRP: 55 }, hysteresis 0, timeToTrigger ms640 }, triggerQuantity rsrp, reportQuantity both, maxReportCells 1, reportInterval ms120, reportAmount r1 } }, { reportConfigId 3, reportConfig reportConfigInterRAT: { triggerType event: { eventId eventB2-NR-r15: { b2-Threshold1-r15 threshold-RSRP: 75, b2-Threshold2NR-r15 nr-RSRP-r15: 16, reportOnLeave-r15 FALSE }, hysteresis 0, timeToTrigger ms100 }, maxReportCells 8, reportInterval ms120, reportAmount r1, reportQuantityCellNR-r15 { ss-rsrp TRUE, ss-rsrq TRUE, ss-sinr TRUE } } } }, measIdToAddModList { { measId 2, measObjectId 1, reportConfigId 2 }, { measId 3, measObjectId 2, reportConfigId 3 } }, quantityConfig { quantityConfigEUTRA { }, quantityConfigNRList-r15 { { measQuantityCellNR-r15 { } } } }, measGapConfig release: NULL }, dedicatedInfoNASList { '275220D26601074....'H }, radioResourceConfigDedicated { srb-ToAddModList { { srb-Identity 2, rlc-Config explicitValue: am: { ul-AM-RLC { t-PollRetransmit ms60, pollPDU pInfinity, pollByte kBinfinity, maxRetxThreshold t32 }, dl-AM-RLC { t-Reordering ms45, t-StatusProhibit ms0 } }, logicalChannelConfig defaultValue: NULL } }, physicalConfigDedicated { antennaInfo-r10 explicitValue-r10: { transmissionMode-r10 tm3, codebookSubsetRestriction-r10 '11'B, ue-TransmitAntennaSelection release: NULL }, cqi-ReportConfig-r10 { nomPDSCH-RS-EPRE-Offset 0, cqi-ReportPeriodic-r10 setup: { cqi-PUCCH-ResourceIndex-r10 0, cqi-pmi-ConfigIndex 38, cqi-FormatIndicatorPeriodic-r10 widebandCQI-r10: { }, ri-ConfigIndex 483, simultaneousAckNackAndCQI TRUE } } }, drb-ToAddModList-r15 { { eps-BearerIdentity 5, drb-Identity 1, rlc-Config am: { ul-AM-RLC { t-PollRetransmit ms80, pollPDU p64, pollByte kB125, maxRetxThreshold t32 }, dl-AM-RLC { t-Reordering ms35, t-StatusProhibit ms10 } }, logicalChannelIdentity 3, logicalChannelConfig { ul-SpecificParameters { priority 15, prioritisedBitRate kBps8, bucketSizeDuration ms100, logicalChannelGroup 3 } } } } }, nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nonCriticalExtension { nr-RadioBearerConfig1-r15 { drb-ToAddModList { { cnAssociation eps-BearerIdentity: 5, drb-Identity 1, pdcp-Config { drb { discardTimer infinity, pdcp-SN-SizeUL len18bits, pdcp-SN-SizeDL len18bits, headerCompression notUsed: NULL, statusReportRequired true }, t-Reordering ms3000 } } }, securityConfig { securityAlgorithmConfig { cipheringAlgorithm nea0 }, keyToUse master } }
[6] Measurement Report
{ message c1: measurementReport: { criticalExtensions c1: measurementReport-r8: { measResults { measId 3, measResultPCell { rsrpResult 58, rsrqResult 32 }, measResultNeighCells measResultNeighCellListNR-r15: { { pci-r15 500, measResultCell-r15 { rsrpResult-r15 59, rsrqResult-r15 87, rs-sinr-Result-r15 90 } } }
[7] Mobility From EUTRA Command
{ message c1: mobilityFromEUTRACommand: { rrc-TransactionIdentifier 0, criticalExtensions c1: mobilityFromEUTRACommand-r9: { cs-FallbackIndicator FALSE, purpose handover: { targetRAT-Type nr, targetRAT-MessageContainer { rrc-TransactionIdentifier 0, criticalExtensions rrcReconfiguration: { radioBearerConfig { srb-ToAddModList { { srb-Identity 1 }, { srb-Identity 2 } }, drb-ToAddModList { { cnAssociation sdap-Config: { pdu-Session 1, sdap-HeaderDL absent, sdap-HeaderUL present, defaultDRB TRUE, mappedQoS-FlowsToAdd { 1 } }, drb-Identity 1, pdcp-Config { drb { discardTimer infinity, pdcp-SN-SizeUL len18bits, pdcp-SN-SizeDL len18bits, headerCompression notUsed: NULL, statusReportRequired true }, t-Reordering ms3000 } } }, securityConfig { securityAlgorithmConfig { cipheringAlgorithm nea0, integrityProtAlgorithm nia2 }, keyToUse master } }, nonCriticalExtension { masterCellGroup { cellGroupId 0, rlc-BearerToAddModList { { logicalChannelIdentity 4, servedRadioBearer drb-Identity: 1, rlc-Config am: { ul-AM-RLC { sn-FieldLength size18, t-PollRetransmit ms80, pollPDU p64, pollByte kB125, maxRetxThreshold t4 }, dl-AM-RLC { sn-FieldLength size18, t-Reassembly ms80, t-StatusProhibit ms10 } }, mac-LogicalChannelConfig { ul-SpecificParameters { priority 13, prioritisedBitRate kBps8, bucketSizeDuration ms100, logicalChannelGroup 7, schedulingRequestID 0, logicalChannelSR-Mask FALSE, logicalChannelSR-DelayTimerApplied FALSE } } }, { logicalChannelIdentity 1, servedRadioBearer srb-Identity: 1, rlc-Config am: { ul-AM-RLC { sn-FieldLength size12, t-PollRetransmit ms45, pollPDU infinity, pollByte infinity, maxRetxThreshold t8 }, dl-AM-RLC { sn-FieldLength size12, t-Reassembly ms35, t-StatusProhibit ms0 } }, mac-LogicalChannelConfig { ul-SpecificParameters { priority 1, prioritisedBitRate infinity, bucketSizeDuration ms5, logicalChannelGroup 0, schedulingRequestID 0, logicalChannelSR-Mask FALSE, logicalChannelSR-DelayTimerApplied FALSE } } }, { logicalChannelIdentity 2, servedRadioBearer srb-Identity: 2, rlc-Config am: { ul-AM-RLC { sn-FieldLength size12, t-PollRetransmit ms45, pollPDU infinity, pollByte infinity, maxRetxThreshold t8 }, dl-AM-RLC { sn-FieldLength size12, t-Reassembly ms35, t-StatusProhibit ms0 } }, mac-LogicalChannelConfig { ul-SpecificParameters { priority 3, prioritisedBitRate infinity, bucketSizeDuration ms5, logicalChannelGroup 0, schedulingRequestID 0, logicalChannelSR-Mask FALSE, logicalChannelSR-DelayTimerApplied FALSE } } } }, mac-CellGroupConfig { schedulingRequestConfig { schedulingRequestToAddModList { { schedulingRequestId 0, sr-TransMax n64 } } }, bsr-Config { periodicBSR-Timer sf20, retxBSR-Timer sf320 }, tag-Config { tag-ToAddModList { { tag-Id 0, timeAlignmentTimer infinity } } }, phr-Config setup: { phr-PeriodicTimer sf500, phr-ProhibitTimer sf200, phr-Tx-PowerFactorChange dB3, multiplePHR FALSE, dummy FALSE, phr-Type2OtherCell FALSE, phr-ModeOtherCG real }, skipUplinkTxDynamic FALSE, dataInactivityTimer release: NULL }, physicalCellGroupConfig { pdsch-HARQ-ACK-Codebook dynamic }, spCellConfig { reconfigurationWithSync { spCellConfigCommon { physCellId 500, downlinkConfigCommon { frequencyInfoDL { absoluteFrequencySSB 632544, frequencyBandList { 78 }, absoluteFrequencyPointA 632016, scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialDownlinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, pdcch-ConfigCommon setup: { controlResourceSetZero 10, searchSpaceZero 0, commonSearchSpaceList { { searchSpaceId 1, controlResourceSetId 0, monitoringSlotPeriodicityAndOffset sl1: NULL, monitoringSymbolsWithinSlot '10000000000000'B, nrofCandidates { aggregationLevel1 n0, aggregationLevel2 n0, aggregationLevel4 n4, aggregationLevel8 n0, aggregationLevel16 n0 }, searchSpaceType common: { dci-Format0-0-AndFormat1-0 { } } } }, searchSpaceSIB1 0, searchSpaceOtherSystemInformation 1, pagingSearchSpace 1, ra-SearchSpace 1 }, pdsch-ConfigCommon setup: { pdsch-TimeDomainAllocationList { { mappingType typeA, startSymbolAndLength 40 }, { mappingType typeA, startSymbolAndLength 57 } } } } }, uplinkConfigCommon { frequencyInfoUL { scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialUplinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, rach-ConfigCommon setup: { rach-ConfigGeneric { prach-ConfigurationIndex 160, msg1-FDM one, msg1-FrequencyStart 3, zeroCorrelationZoneConfig 15, preambleReceivedTargetPower -110, preambleTransMax n7, powerRampingStep dB4, ra-ResponseWindow sl20 }, ssb-perRACH-OccasionAndCB-PreamblesPerSSB one: n8, ra-ContentionResolutionTimer sf64, prach-RootSequenceIndex l139: 1, msg1-SubcarrierSpacing kHz30, restrictedSetConfig unrestrictedSet }, pusch-ConfigCommon setup: { pusch-TimeDomainAllocationList { { k2 7, mappingType typeA, startSymbolAndLength 27 }, { k2 4, mappingType typeA, startSymbolAndLength 27 }, { k2 5, mappingType typeA, startSymbolAndLength 27 } }, p0-NominalWithGrant -84 }, pucch-ConfigCommon setup: { pucch-ResourceCommon 11, pucch-GroupHopping neither, p0-nominal -90 } }, dummy ms500 }, ssb-PositionsInBurst mediumBitmap: '80'H, ssb-periodicityServingCell ms20, dmrs-TypeA-Position pos2, ssbSubcarrierSpacing kHz30, tdd-UL-DL-ConfigurationCommon { referenceSubcarrierSpacing kHz30, pattern1 { dl-UL-TransmissionPeriodicity ms5, nrofDownlinkSlots 7, nrofDownlinkSymbols 6, nrofUplinkSlots 2, nrofUplinkSymbols 4 } }, ss-PBCH-BlockPower -56 }, newUE-Identity 17921, t304 ms1000, smtc { periodicityAndOffset sf20: 0, duration sf1 } }, spCellConfigDedicated { initialDownlinkBWP { pdcch-Config setup: { controlResourceSetToAddModList { { controlResourceSetId 2, frequencyDomainResources '111111110000000000000000000000000000000000000'B, duration 1, cce-REG-MappingType nonInterleaved: NULL, precoderGranularity sameAsREG-bundle } }, searchSpacesToAddModList { { searchSpaceId 2, controlResourceSetId 2, monitoringSlotPeriodicityAndOffset sl1: NULL, monitoringSymbolsWithinSlot '10000000000000'B, nrofCandidates { aggregationLevel1 n0, aggregationLevel2 n2, aggregationLevel4 n1, aggregationLevel8 n0, aggregationLevel16 n0 }, searchSpaceType ue-Specific: { dci-Formats formats0-1-And-1-1 } } } }, pdsch-Config setup: { dmrs-DownlinkForPDSCH-MappingTypeA setup: { dmrs-AdditionalPosition pos1 }, tci-StatesToAddModList { { tci-StateId 0, qcl-Type1 { referenceSignal ssb: 0, qcl-Type typeD } } }, resourceAllocation resourceAllocationType1, rbg-Size config1, mcs-Table qam256, prb-BundlingType staticBundling: { bundleSize wideband }, zp-CSI-RS-ResourceToAddModList { { zp-CSI-RS-ResourceId 0, resourceMapping { frequencyDomainAllocation row4: '100'B, nrofPorts p4, firstOFDMSymbolInTimeDomain 8, cdm-Type fd-CDM2, density one: NULL, freqBand { startingRB 0, nrofRBs 52 } }, periodicityAndOffset slots80: 1 } }, p-ZP-CSI-RS-ResourceSet setup: { zp-CSI-RS-ResourceSetId 0, zp-CSI-RS-ResourceIdList { 0 } } } }, firstActiveDownlinkBWP-Id 0, uplinkConfig { initialUplinkBWP { pucch-Config setup: { resourceSetToAddModList { { pucch-ResourceSetId 0, resourceList { 0, 1, 2, 3, 4, 5, 6, 7 } }, { pucch-ResourceSetId 1, resourceList { 8, 9, 10, 11 } } }, resourceToAddModList { { pucch-ResourceId 0, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 1, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 0 } }, { pucch-ResourceId 1, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 5, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 0 } }, { pucch-ResourceId 2, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 9, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 0 } }, { pucch-ResourceId 3, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 1, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 1 } }, { pucch-ResourceId 4, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 5, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 1 } }, { pucch-ResourceId 5, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 9, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 1 } }, { pucch-ResourceId 6, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 1, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 2 } }, { pucch-ResourceId 7, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 5, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 2 } }, { pucch-ResourceId 8, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 0 } }, { pucch-ResourceId 9, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 2 } }, { pucch-ResourceId 10, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 4 } }, { pucch-ResourceId 11, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 6 } }, { pucch-ResourceId 12, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 9, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 2 } }, { pucch-ResourceId 13, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 8 } } }, format1 setup: { }, format2 setup: { maxCodeRate zeroDot25 }, schedulingRequestResourceToAddModList { { schedulingRequestResourceId 1, schedulingRequestID 0, periodicityAndOffset sl40: 8, resource 12 } }, dl-DataToUL-ACK { 8, 7, 6, 5, 4, 12, 11 } }, pusch-Config setup: { txConfig codebook, dmrs-UplinkForPUSCH-MappingTypeA setup: { dmrs-AdditionalPosition pos1, transformPrecodingDisabled { } }, pusch-PowerControl { msg3-Alpha alpha1, p0-AlphaSets { { p0-PUSCH-AlphaSetId 0, p0 0, alpha alpha1 } }, pathlossReferenceRSToAddModList { { pusch-PathlossReferenceRS-Id 0, referenceSignal ssb-Index: 0 } }, sri-PUSCH-MappingToAddModList { { sri-PUSCH-PowerControlId 0, sri-PUSCH-PathlossReferenceRS-Id 0, sri-P0-PUSCH-AlphaSetId 0, sri-PUSCH-ClosedLoopIndex i0 } } }, resourceAllocation resourceAllocationType1, mcs-Table qam256, mcs-TableTransformPrecoder qam256, codebookSubset nonCoherent, maxRank 1, uci-OnPUSCH setup: { betaOffsets semiStatic: { betaOffsetACK-Index1 9, betaOffsetACK-Index2 9, betaOffsetACK-Index3 9, betaOffsetCSI-Part1-Index1 7, betaOffsetCSI-Part1-Index2 7, betaOffsetCSI-Part2-Index1 7, betaOffsetCSI-Part2-Index2 7 }, scaling f1 } }, srs-Config setup: { srs-ResourceSetToAddModList { { srs-ResourceSetId 0, srs-ResourceIdList { 0 }, resourceType aperiodic: { aperiodicSRS-ResourceTrigger 1, slotOffset 7 }, usage codebook, p0 -84, pathlossReferenceRS ssb-Index: 0 } }, srs-ResourceToAddModList { { srs-ResourceId 0, nrofSRS-Ports port1, transmissionComb n2: { combOffset-n2 0, cyclicShift-n2 0 }, resourceMapping { startPosition 0, nrofSymbols n1, repetitionFactor n1 }, freqDomainPosition 0, freqDomainShift 5, freqHopping { c-SRS 11, b-SRS 3, b-hop 0 }, groupOrSequenceHopping neither, resourceType aperiodic: { }, sequenceId 500 } } } }, firstActiveUplinkBWP-Id 0, pusch-ServingCellConfig setup: { } }, pdcch-ServingCellConfig setup: { }, pdsch-ServingCellConfig setup: { nrofHARQ-ProcessesForPDSCH n16, maxMIMO-Layers 2 }, csi-MeasConfig setup: { nzp-CSI-RS-ResourceToAddModList { { nzp-CSI-RS-ResourceId 0, resourceMapping { frequencyDomainAllocation other: '100000'B, nrofPorts p2, firstOFDMSymbolInTimeDomain 4, cdm-Type fd-CDM2, density one: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots80: 1, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 1, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 4, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 11, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 2, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 8, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 11, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 3, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 4, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 12, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 4, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 8, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 12, qcl-InfoPeriodicCSI-RS 0 } }, nzp-CSI-RS-ResourceSetToAddModList { { nzp-CSI-ResourceSetId 0, nzp-CSI-RS-Resources { 0 } }, { nzp-CSI-ResourceSetId 1, nzp-CSI-RS-Resources { 1, 2, 3, 4 }, trs-Info true } }, csi-IM-ResourceToAddModList { { csi-IM-ResourceId 0, csi-IM-ResourceElementPattern pattern1: { subcarrierLocation-p1 s8, symbolLocation-p1 8 }, freqBand { startingRB 0, nrofRBs 52 }, periodicityAndOffset slots80: 1 } }, csi-IM-ResourceSetToAddModList { { csi-IM-ResourceSetId 0, csi-IM-Resources { 0 } } }, csi-ResourceConfigToAddModList { { csi-ResourceConfigId 0, csi-RS-ResourceSetList nzp-CSI-RS-SSB: { nzp-CSI-RS-ResourceSetList { 0 } }, bwp-Id 0, resourceType periodic }, { csi-ResourceConfigId 1, csi-RS-ResourceSetList csi-IM-ResourceSetList: { 0 }, bwp-Id 0, resourceType periodic }, { csi-ResourceConfigId 2, csi-RS-ResourceSetList nzp-CSI-RS-SSB: { nzp-CSI-RS-ResourceSetList { 1 } }, bwp-Id 0, resourceType periodic } }, csi-ReportConfigToAddModList { { reportConfigId 0, resourcesForChannelMeasurement 0, csi-IM-ResourcesForInterference 1, reportConfigType periodic: { reportSlotConfig slots80: 9, pucch-CSI-ResourceList { { uplinkBandwidthPartId 0, pucch-Resource 13 } } }, reportQuantity cri-RI-PMI-CQI: NULL, reportFreqConfiguration { cqi-FormatIndicator widebandCQI, pmi-FormatIndicator widebandPMI }, timeRestrictionForChannelMeasurements notConfigured, timeRestrictionForInterferenceMeasurements notConfigured, codebookConfig { codebookType type1: { subType typeI-SinglePanel: { nrOfAntennaPorts two: { twoTX-CodebookSubsetRestriction '111111'B }, typeI-SinglePanel-ri-Restriction '03'H }, codebookMode 1 } }, groupBasedBeamReporting disabled: { }, cqi-Table table2, subbandSize value1 } } }, tag-Id 0, lte-CRS-ToMatchAround release: NULL } } }, fullConfig true, masterKeyUpdate { keySetChangeIndicator TRUE, nextHopChainingCount 0, nas-Container '3B9198CC02180000'H }, dedicatedSIB1-Delivery { cellSelectionInfo { q-RxLevMin -70, q-QualMin -20 }, cellAccessRelatedInfo { plmn-IdentityInfoList { { plmn-IdentityList { { mcc { 0, 0, 1 }, mnc { 0, 1 } } }, trackingAreaCode '000064'H, cellIdentity '001234502'H, cellReservedForOperatorUse notReserved } } }, connEstFailureControl { connEstFailCount n1, connEstFailOffsetValidity s30, connEstFailOffset 1 }, servingCellConfigCommon { downlinkConfigCommon { frequencyInfoDL { frequencyBandList { { freqBandIndicatorNR 78 } }, offsetToPointA 24, scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialDownlinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, pdcch-ConfigCommon setup: { commonSearchSpaceList { { searchSpaceId 1, controlResourceSetId 0, monitoringSlotPeriodicityAndOffset sl1: NULL, monitoringSymbolsWithinSlot '10000000000000'B, nrofCandidates { aggregationLevel1 n0, aggregationLevel2 n0, aggregationLevel4 n4, aggregationLevel8 n0, aggregationLevel16 n0 }, searchSpaceType common: { dci-Format0-0-AndFormat1-0 { } } } }, searchSpaceSIB1 0, searchSpaceOtherSystemInformation 1, pagingSearchSpace 1, ra-SearchSpace 1 }, pdsch-ConfigCommon setup: { pdsch-TimeDomainAllocationList { { mappingType typeA, startSymbolAndLength 40 }, { mappingType typeA, startSymbolAndLength 57 } } } }, bcch-Config { modificationPeriodCoeff n4 }, pcch-Config { defaultPagingCycle rf128, nAndPagingFrameOffset oneT: NULL, ns one } }, uplinkConfigCommon { frequencyInfoUL { scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialUplinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, rach-ConfigCommon setup: { rach-ConfigGeneric { prach-ConfigurationIndex 160, msg1-FDM one, msg1-FrequencyStart 3, zeroCorrelationZoneConfig 15, preambleReceivedTargetPower -110, preambleTransMax n7, powerRampingStep dB4, ra-ResponseWindow sl20 }, ssb-perRACH-OccasionAndCB-PreamblesPerSSB one: n8, ra-ContentionResolutionTimer sf64, prach-RootSequenceIndex l139: 1, msg1-SubcarrierSpacing kHz30, restrictedSetConfig unrestrictedSet }, pusch-ConfigCommon setup: { pusch-TimeDomainAllocationList { { k2 7, mappingType typeA, startSymbolAndLength 27 }, { k2 4, mappingType typeA, startSymbolAndLength 27 }, { k2 5, mappingType typeA, startSymbolAndLength 27 } }, p0-NominalWithGrant -84 }, pucch-ConfigCommon setup: { pucch-ResourceCommon 11, pucch-GroupHopping neither, p0-nominal -90 } }, timeAlignmentTimerCommon infinity }, ssb-PositionsInBurst { inOneGroup '80'H }, ssb-PeriodicityServingCell ms20, tdd-UL-DL-ConfigurationCommon { referenceSubcarrierSpacing kHz30, pattern1 { dl-UL-TransmissionPeriodicity ms5, nrofDownlinkSlots 7, nrofDownlinkSymbols 6, nrofUplinkSlots 2, nrofUplinkSymbols 4 } }, ss-PBCH-BlockPower -56 }, ue-TimersAndConstants { t300 ms1000, t301 ms1000, t310 ms1000, n310 n1, t311 ms30000, n311 n1, t319 ms1000 } }

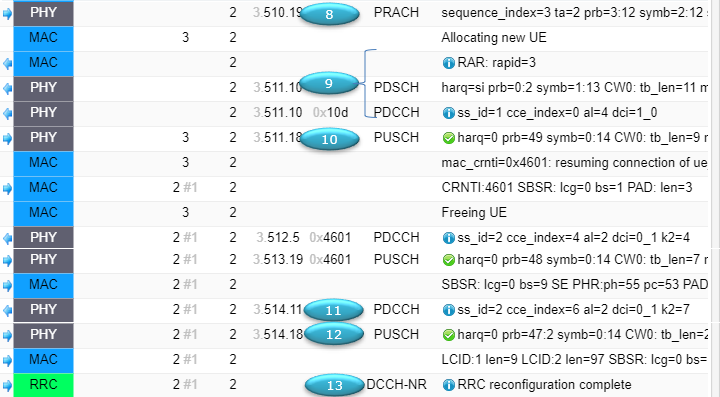

[8] PRACH - NR
Message: sequence_index=3 ta=2 prb=3:12 symb=2:12 snr=21.1
[9] RAR- NR
[RAR MAC] Message: RAR: rapid=3
Data: rapid=3 ta=2 ul_grant: hopping_flag=0 riv=0x31 time_domain_rsc=2 mcs=4 tpc_command=3 csi_request=0 tc-rnti=0x4602
[RAR PDCCH] Message: ss_id=1 cce_index=0 al=4 dci=1_0
Data: rb_alloc=0x30 time_domain_rsc=0 vrb_to_prb_map=0 mcs=2 tb_scaling=0
[RAR PDSCH] Message: harq=si prb=0:2 symb=1:13 CW0: tb_len=11 mod=2 rv_idx=0 cr=0.19
[10] Msg3- NR
Message: harq=0 prb=49 symb=0:14 CW0: tb_len=9 mod=2 rv_idx=0 cr=0.30 retx=0 crc=OK snr=39.3 epre=-76.2 ta=0.2
[11, 12, 13] RrcReconfigurationComplete
[PDCCH] Message: ss_id=2 cce_index=6 al=2 dci=0_1 k2=7
Data: rb_alloc=0x62 time_domain_rsc=0 mcs=26 ndi=0 rv_idx=0 harq_process=0 dai=3 tpc_command=1 antenna_ports=0 srs_request=0 dmrs_seq_init=0 ul_sch_indicator=1
[PUSCH] Message: harq=0 prb=47:2 symb=0:14 CW0: tb_len=277 mod=8 rv_idx=0 cr=0.89 retx=0 crc=OK snr=35.2 epre=-75.7 ta=0.2
[RRC] Message: RRC reconfiguration complete
Data: 0000: 08 00 .. { message c1: rrcReconfigurationComplete: { rrc-TransactionIdentifier 0, criticalExtensions rrcReconfigurationComplete: { } } }
[A] RrcReconfiguration
{ rrc-TransactionIdentifier 0, criticalExtensions rrcReconfiguration: { radioBearerConfig { srb-ToAddModList { { srb-Identity 1 }, { srb-Identity 2 } }, drb-ToAddModList { { cnAssociation sdap-Config: { pdu-Session 1, sdap-HeaderDL absent, sdap-HeaderUL present, defaultDRB TRUE, mappedQoS-FlowsToAdd { 1 } }, drb-Identity 1, pdcp-Config { drb { discardTimer infinity, pdcp-SN-SizeUL len18bits, pdcp-SN-SizeDL len18bits, headerCompression notUsed: NULL, statusReportRequired true }, t-Reordering ms3000 } } }, securityConfig { securityAlgorithmConfig { cipheringAlgorithm nea0, integrityProtAlgorithm nia2 }, keyToUse master } }, nonCriticalExtension { masterCellGroup { cellGroupId 0, rlc-BearerToAddModList { { logicalChannelIdentity 4, servedRadioBearer drb-Identity: 1, rlc-Config am: { ul-AM-RLC { sn-FieldLength size18, t-PollRetransmit ms80, pollPDU p64, pollByte kB125, maxRetxThreshold t4 }, dl-AM-RLC { sn-FieldLength size18, t-Reassembly ms80, t-StatusProhibit ms10 } }, mac-LogicalChannelConfig { ul-SpecificParameters { priority 13, prioritisedBitRate kBps8, bucketSizeDuration ms100, logicalChannelGroup 7, schedulingRequestID 0, logicalChannelSR-Mask FALSE, logicalChannelSR-DelayTimerApplied FALSE } } }, { logicalChannelIdentity 1, servedRadioBearer srb-Identity: 1, rlc-Config am: { ul-AM-RLC { sn-FieldLength size12, t-PollRetransmit ms45, pollPDU infinity, pollByte infinity, maxRetxThreshold t8 }, dl-AM-RLC { sn-FieldLength size12, t-Reassembly ms35, t-StatusProhibit ms0 } }, mac-LogicalChannelConfig { ul-SpecificParameters { priority 1, prioritisedBitRate infinity, bucketSizeDuration ms5, logicalChannelGroup 0, schedulingRequestID 0, logicalChannelSR-Mask FALSE, logicalChannelSR-DelayTimerApplied FALSE } } }, { logicalChannelIdentity 2, servedRadioBearer srb-Identity: 2, rlc-Config am: { ul-AM-RLC { sn-FieldLength size12, t-PollRetransmit ms45, pollPDU infinity, pollByte infinity, maxRetxThreshold t8 }, dl-AM-RLC { sn-FieldLength size12, t-Reassembly ms35, t-StatusProhibit ms0 } }, mac-LogicalChannelConfig { ul-SpecificParameters { priority 3, prioritisedBitRate infinity, bucketSizeDuration ms5, logicalChannelGroup 0, schedulingRequestID 0, logicalChannelSR-Mask FALSE, logicalChannelSR-DelayTimerApplied FALSE } } } }, mac-CellGroupConfig { schedulingRequestConfig { schedulingRequestToAddModList { { schedulingRequestId 0, sr-TransMax n64 } } }, bsr-Config { periodicBSR-Timer sf20, retxBSR-Timer sf320 }, tag-Config { tag-ToAddModList { { tag-Id 0, timeAlignmentTimer infinity } } }, phr-Config setup: { phr-PeriodicTimer sf500, phr-ProhibitTimer sf200, phr-Tx-PowerFactorChange dB3, multiplePHR FALSE, dummy FALSE, phr-Type2OtherCell FALSE, phr-ModeOtherCG real }, skipUplinkTxDynamic FALSE, dataInactivityTimer release: NULL }, physicalCellGroupConfig { pdsch-HARQ-ACK-Codebook dynamic }, spCellConfig { reconfigurationWithSync { spCellConfigCommon { physCellId 500, downlinkConfigCommon { frequencyInfoDL { absoluteFrequencySSB 632544, frequencyBandList { 78 }, absoluteFrequencyPointA 632016, scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialDownlinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, pdcch-ConfigCommon setup: { controlResourceSetZero 10, searchSpaceZero 0, commonSearchSpaceList { { searchSpaceId 1, controlResourceSetId 0, monitoringSlotPeriodicityAndOffset sl1: NULL, monitoringSymbolsWithinSlot '10000000000000'B, nrofCandidates { aggregationLevel1 n0, aggregationLevel2 n0, aggregationLevel4 n4, aggregationLevel8 n0, aggregationLevel16 n0 }, searchSpaceType common: { dci-Format0-0-AndFormat1-0 { } } } }, searchSpaceSIB1 0, searchSpaceOtherSystemInformation 1, pagingSearchSpace 1, ra-SearchSpace 1 }, pdsch-ConfigCommon setup: { pdsch-TimeDomainAllocationList { { mappingType typeA, startSymbolAndLength 40 }, { mappingType typeA, startSymbolAndLength 57 } } } } }, uplinkConfigCommon { frequencyInfoUL { scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialUplinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, rach-ConfigCommon setup: { rach-ConfigGeneric { prach-ConfigurationIndex 160, msg1-FDM one, msg1-FrequencyStart 3, zeroCorrelationZoneConfig 15, preambleReceivedTargetPower -110, preambleTransMax n7, powerRampingStep dB4, ra-ResponseWindow sl20 }, ssb-perRACH-OccasionAndCB-PreamblesPerSSB one: n8, ra-ContentionResolutionTimer sf64, prach-RootSequenceIndex l139: 1, msg1-SubcarrierSpacing kHz30, restrictedSetConfig unrestrictedSet }, pusch-ConfigCommon setup: { pusch-TimeDomainAllocationList { { k2 7, mappingType typeA, startSymbolAndLength 27 }, { k2 4, mappingType typeA, startSymbolAndLength 27 }, { k2 5, mappingType typeA, startSymbolAndLength 27 } }, p0-NominalWithGrant -84 }, pucch-ConfigCommon setup: { pucch-ResourceCommon 11, pucch-GroupHopping neither, p0-nominal -90 } }, dummy ms500 }, ssb-PositionsInBurst mediumBitmap: '80'H, ssb-periodicityServingCell ms20, dmrs-TypeA-Position pos2, ssbSubcarrierSpacing kHz30, tdd-UL-DL-ConfigurationCommon { referenceSubcarrierSpacing kHz30, pattern1 { dl-UL-TransmissionPeriodicity ms5, nrofDownlinkSlots 7, nrofDownlinkSymbols 6, nrofUplinkSlots 2, nrofUplinkSymbols 4 } }, ss-PBCH-BlockPower -56 }, newUE-Identity 17921, t304 ms1000, smtc { periodicityAndOffset sf20: 0, duration sf1 } }, spCellConfigDedicated { initialDownlinkBWP { pdcch-Config setup: { controlResourceSetToAddModList { { controlResourceSetId 2, frequencyDomainResources '111111110000000000000000000000000000000000000'B, duration 1, cce-REG-MappingType nonInterleaved: NULL, precoderGranularity sameAsREG-bundle } }, searchSpacesToAddModList { { searchSpaceId 2, controlResourceSetId 2, monitoringSlotPeriodicityAndOffset sl1: NULL, monitoringSymbolsWithinSlot '10000000000000'B, nrofCandidates { aggregationLevel1 n0, aggregationLevel2 n2, aggregationLevel4 n1, aggregationLevel8 n0, aggregationLevel16 n0 }, searchSpaceType ue-Specific: { dci-Formats formats0-1-And-1-1 } } } }, pdsch-Config setup: { dmrs-DownlinkForPDSCH-MappingTypeA setup: { dmrs-AdditionalPosition pos1 }, tci-StatesToAddModList { { tci-StateId 0, qcl-Type1 { referenceSignal ssb: 0, qcl-Type typeD } } }, resourceAllocation resourceAllocationType1, rbg-Size config1, mcs-Table qam256, prb-BundlingType staticBundling: { bundleSize wideband }, zp-CSI-RS-ResourceToAddModList { { zp-CSI-RS-ResourceId 0, resourceMapping { frequencyDomainAllocation row4: '100'B, nrofPorts p4, firstOFDMSymbolInTimeDomain 8, cdm-Type fd-CDM2, density one: NULL, freqBand { startingRB 0, nrofRBs 52 } }, periodicityAndOffset slots80: 1 } }, p-ZP-CSI-RS-ResourceSet setup: { zp-CSI-RS-ResourceSetId 0, zp-CSI-RS-ResourceIdList { 0 } } } }, firstActiveDownlinkBWP-Id 0, uplinkConfig { initialUplinkBWP { pucch-Config setup: { resourceSetToAddModList { { pucch-ResourceSetId 0, resourceList { 0, 1, 2, 3, 4, 5, 6, 7 } }, { pucch-ResourceSetId 1, resourceList { 8, 9, 10, 11 } } }, resourceToAddModList { { pucch-ResourceId 0, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 1, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 0 } }, { pucch-ResourceId 1, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 5, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 0 } }, { pucch-ResourceId 2, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 9, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 0 } }, { pucch-ResourceId 3, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 1, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 1 } }, { pucch-ResourceId 4, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 5, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 1 } }, { pucch-ResourceId 5, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 9, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 1 } }, { pucch-ResourceId 6, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 1, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 2 } }, { pucch-ResourceId 7, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 5, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 2 } }, { pucch-ResourceId 8, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 0 } }, { pucch-ResourceId 9, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 2 } }, { pucch-ResourceId 10, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 4 } }, { pucch-ResourceId 11, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 6 } }, { pucch-ResourceId 12, startingPRB 50, intraSlotFrequencyHopping enabled, secondHopPRB 0, format format1: { initialCyclicShift 9, nrofSymbols 14, startingSymbolIndex 0, timeDomainOCC 2 } }, { pucch-ResourceId 13, startingPRB 1, intraSlotFrequencyHopping enabled, secondHopPRB 49, format format2: { nrofPRBs 1, nrofSymbols 2, startingSymbolIndex 8 } } }, format1 setup: { }, format2 setup: { maxCodeRate zeroDot25 }, schedulingRequestResourceToAddModList { { schedulingRequestResourceId 1, schedulingRequestID 0, periodicityAndOffset sl40: 8, resource 12 } }, dl-DataToUL-ACK { 8, 7, 6, 5, 4, 12, 11 } }, pusch-Config setup: { txConfig codebook, dmrs-UplinkForPUSCH-MappingTypeA setup: { dmrs-AdditionalPosition pos1, transformPrecodingDisabled { } }, pusch-PowerControl { msg3-Alpha alpha1, p0-AlphaSets { { p0-PUSCH-AlphaSetId 0, p0 0, alpha alpha1 } }, pathlossReferenceRSToAddModList { { pusch-PathlossReferenceRS-Id 0, referenceSignal ssb-Index: 0 } }, sri-PUSCH-MappingToAddModList { { sri-PUSCH-PowerControlId 0, sri-PUSCH-PathlossReferenceRS-Id 0, sri-P0-PUSCH-AlphaSetId 0, sri-PUSCH-ClosedLoopIndex i0 } } }, resourceAllocation resourceAllocationType1, mcs-Table qam256, mcs-TableTransformPrecoder qam256, codebookSubset nonCoherent, maxRank 1, uci-OnPUSCH setup: { betaOffsets semiStatic: { betaOffsetACK-Index1 9, betaOffsetACK-Index2 9, betaOffsetACK-Index3 9, betaOffsetCSI-Part1-Index1 7, betaOffsetCSI-Part1-Index2 7, betaOffsetCSI-Part2-Index1 7, betaOffsetCSI-Part2-Index2 7 }, scaling f1 } }, srs-Config setup: { srs-ResourceSetToAddModList { { srs-ResourceSetId 0, srs-ResourceIdList { 0 }, resourceType aperiodic: { aperiodicSRS-ResourceTrigger 1, slotOffset 7 }, usage codebook, p0 -84, pathlossReferenceRS ssb-Index: 0 } }, srs-ResourceToAddModList { { srs-ResourceId 0, nrofSRS-Ports port1, transmissionComb n2: { combOffset-n2 0, cyclicShift-n2 0 }, resourceMapping { startPosition 0, nrofSymbols n1, repetitionFactor n1 }, freqDomainPosition 0, freqDomainShift 5, freqHopping { c-SRS 11, b-SRS 3, b-hop 0 }, groupOrSequenceHopping neither, resourceType aperiodic: { }, sequenceId 500 } } } }, firstActiveUplinkBWP-Id 0, pusch-ServingCellConfig setup: { } }, pdcch-ServingCellConfig setup: { }, pdsch-ServingCellConfig setup: { nrofHARQ-ProcessesForPDSCH n16, maxMIMO-Layers 2 }, csi-MeasConfig setup: { nzp-CSI-RS-ResourceToAddModList { { nzp-CSI-RS-ResourceId 0, resourceMapping { frequencyDomainAllocation other: '100000'B, nrofPorts p2, firstOFDMSymbolInTimeDomain 4, cdm-Type fd-CDM2, density one: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots80: 1, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 1, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 4, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 11, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 2, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 8, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 11, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 3, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 4, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 12, qcl-InfoPeriodicCSI-RS 0 }, { nzp-CSI-RS-ResourceId 4, resourceMapping { frequencyDomainAllocation row1: '1'H, nrofPorts p1, firstOFDMSymbolInTimeDomain 8, cdm-Type noCDM, density three: NULL, freqBand { startingRB 0, nrofRBs 52 } }, powerControlOffset 0, powerControlOffsetSS db0, scramblingID 500, periodicityAndOffset slots40: 12, qcl-InfoPeriodicCSI-RS 0 } }, nzp-CSI-RS-ResourceSetToAddModList { { nzp-CSI-ResourceSetId 0, nzp-CSI-RS-Resources { 0 } }, { nzp-CSI-ResourceSetId 1, nzp-CSI-RS-Resources { 1, 2, 3, 4 }, trs-Info true } }, csi-IM-ResourceToAddModList { { csi-IM-ResourceId 0, csi-IM-ResourceElementPattern pattern1: { subcarrierLocation-p1 s8, symbolLocation-p1 8 }, freqBand { startingRB 0, nrofRBs 52 }, periodicityAndOffset slots80: 1 } }, csi-IM-ResourceSetToAddModList { { csi-IM-ResourceSetId 0, csi-IM-Resources { 0 } } }, csi-ResourceConfigToAddModList { { csi-ResourceConfigId 0, csi-RS-ResourceSetList nzp-CSI-RS-SSB: { nzp-CSI-RS-ResourceSetList { 0 } }, bwp-Id 0, resourceType periodic }, { csi-ResourceConfigId 1, csi-RS-ResourceSetList csi-IM-ResourceSetList: { 0 }, bwp-Id 0, resourceType periodic }, { csi-ResourceConfigId 2, csi-RS-ResourceSetList nzp-CSI-RS-SSB: { nzp-CSI-RS-ResourceSetList { 1 } }, bwp-Id 0, resourceType periodic } }, csi-ReportConfigToAddModList { { reportConfigId 0, resourcesForChannelMeasurement 0, csi-IM-ResourcesForInterference 1, reportConfigType periodic: { reportSlotConfig slots80: 9, pucch-CSI-ResourceList { { uplinkBandwidthPartId 0, pucch-Resource 13 } } }, reportQuantity cri-RI-PMI-CQI: NULL, reportFreqConfiguration { cqi-FormatIndicator widebandCQI, pmi-FormatIndicator widebandPMI }, timeRestrictionForChannelMeasurements notConfigured, timeRestrictionForInterferenceMeasurements notConfigured, codebookConfig { codebookType type1: { subType typeI-SinglePanel: { nrOfAntennaPorts two: { twoTX-CodebookSubsetRestriction '111111'B }, typeI-SinglePanel-ri-Restriction '03'H }, codebookMode 1 } }, groupBasedBeamReporting disabled: { }, cqi-Table table2, subbandSize value1 } } }, tag-Id 0, lte-CRS-ToMatchAround release: NULL } } }, fullConfig true, masterKeyUpdate { keySetChangeIndicator TRUE, nextHopChainingCount 0, nas-Container '3B9198CC02180000'H }, dedicatedSIB1-Delivery { cellSelectionInfo { q-RxLevMin -70, q-QualMin -20 }, cellAccessRelatedInfo { plmn-IdentityInfoList { { plmn-IdentityList { { mcc { 0, 0, 1 }, mnc { 0, 1 } } }, trackingAreaCode '000064'H, cellIdentity '001234502'H, cellReservedForOperatorUse notReserved } } }, connEstFailureControl { connEstFailCount n1, connEstFailOffsetValidity s30, connEstFailOffset 1 }, servingCellConfigCommon { downlinkConfigCommon { frequencyInfoDL { frequencyBandList { { freqBandIndicatorNR 78 } }, offsetToPointA 24, scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialDownlinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, pdcch-ConfigCommon setup: { commonSearchSpaceList { { searchSpaceId 1, controlResourceSetId 0, monitoringSlotPeriodicityAndOffset sl1: NULL, monitoringSymbolsWithinSlot '10000000000000'B, nrofCandidates { aggregationLevel1 n0, aggregationLevel2 n0, aggregationLevel4 n4, aggregationLevel8 n0, aggregationLevel16 n0 }, searchSpaceType common: { dci-Format0-0-AndFormat1-0 { } } } }, searchSpaceSIB1 0, searchSpaceOtherSystemInformation 1, pagingSearchSpace 1, ra-SearchSpace 1 }, pdsch-ConfigCommon setup: { pdsch-TimeDomainAllocationList { { mappingType typeA, startSymbolAndLength 40 }, { mappingType typeA, startSymbolAndLength 57 } } } }, bcch-Config { modificationPeriodCoeff n4 }, pcch-Config { defaultPagingCycle rf128, nAndPagingFrameOffset oneT: NULL, ns one } }, uplinkConfigCommon { frequencyInfoUL { scs-SpecificCarrierList { { offsetToCarrier 0, subcarrierSpacing kHz30, carrierBandwidth 51 } } }, initialUplinkBWP { genericParameters { locationAndBandwidth 13750, subcarrierSpacing kHz30 }, rach-ConfigCommon setup: { rach-ConfigGeneric { prach-ConfigurationIndex 160, msg1-FDM one, msg1-FrequencyStart 3, zeroCorrelationZoneConfig 15, preambleReceivedTargetPower -110, preambleTransMax n7, powerRampingStep dB4, ra-ResponseWindow sl20 }, ssb-perRACH-OccasionAndCB-PreamblesPerSSB one: n8, ra-ContentionResolutionTimer sf64, prach-RootSequenceIndex l139: 1, msg1-SubcarrierSpacing kHz30, restrictedSetConfig unrestrictedSet }, pusch-ConfigCommon setup: { pusch-TimeDomainAllocationList { { k2 7, mappingType typeA, startSymbolAndLength 27 }, { k2 4, mappingType typeA, startSymbolAndLength 27 }, { k2 5, mappingType typeA, startSymbolAndLength 27 } }, p0-NominalWithGrant -84 }, pucch-ConfigCommon setup: { pucch-ResourceCommon 11, pucch-GroupHopping neither, p0-nominal -90 } }, timeAlignmentTimerCommon infinity }, ssb-PositionsInBurst { inOneGroup '80'H }, ssb-PeriodicityServingCell ms20, tdd-UL-DL-ConfigurationCommon { referenceSubcarrierSpacing kHz30, pattern1 { dl-UL-TransmissionPeriodicity ms5, nrofDownlinkSlots 7, nrofDownlinkSymbols 6, nrofUplinkSlots 2, nrofUplinkSymbols 4 } }, ss-PBCH-BlockPower -56 }, ue-TimersAndConstants { t300 ms1000, t301 ms1000, t310 ms1000, n310 n1, t311 ms30000, n311 n1, t319 ms1000 } } } } }
|
||
