4G/LTE - RRC









RRC IE - UE Capability Info

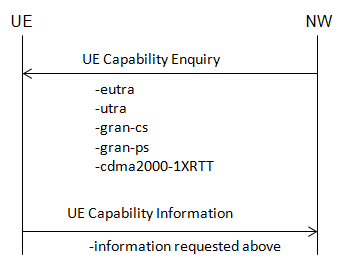

In most of communication protocol, the parties participating in the communication exchange the information about its capability so that the each party does not request any capability which is not supported by its counter part. In mobile communication (e.g, LTE,WCDMA), Network informs on its capability via various SIB messages and UE informs its capability via various RRC or NAS messages.

In WCDMA, UE informs on its capability as a part of RRC Connection Complete message and in LTE they defined a separate message soly designed for this kind of capability information report. The procedure is as shown below. Whenever network wants to know UE capability (in most case, during registration), network send 'UE Capability Enquiry' message specify which information it wants to get (There are five different types of capability items, network can specify any one or multiple items in UE Capability Enquiry message). Then UE has to report all the capability information requested by Network.





For further details of UE Capability Informatioin message refer to UE Capability Information page.



Following is an example of UE Capability Information message carrying eutra and utra capability. Don't try to memorize all of these. Just read through as you have time. You will get some big picture across full stack of each technology. It would be a kind of 'List of contents' in a thick book.



ueCapabilityInformation-r8

    ue-CapabilityRAT-ContainerList: 2 items

        Item 0

            UE-CapabilityRAT-Container

                rat-Type: eutra (0)

                ueCapabilityRAT-Container: c520000304184200e1f91ff87e47fe1f91ff87e47fdfc3ff...

                UE-EUTRA-Capability

                    accessStratumRelease: rel9 (1)

                    ue-Category: 3

                    pdcp-Parameters

                        supportedROHC-Profiles

                            ...0 .... profile0x0001: False

                            .... 0... profile0x0002: False

                            .... .0.. profile0x0003: False

                            .... ..0. profile0x0004: False

                            .... ...0 profile0x0006: False

                            0... .... profile0x0101: False

                            .0.. .... profile0x0102: False

                            ..0. .... profile0x0103: False

                            ...0 .... profile0x0104: False

                        maxNumberROHC-ContextSessions: cs2 (0)

                    phyLayerParameters

                        0... .... ue-TxAntennaSelectionSupported: False

                        .0.. .... ue-SpecificRefSigsSupported: False

                    rf-Parameters

                        supportedBandListEUTRA: 4 items

                            Item 0

                                SupportedBandEUTRA

                                    bandEUTRA: 2

                                    .... ..0. halfDuplex: False

                            Item 1

                                SupportedBandEUTRA

                                    bandEUTRA: 4

                                    .... .0.. halfDuplex: False

                            Item 2

                                SupportedBandEUTRA

                                    bandEUTRA: 5

                                    .... 0... halfDuplex: False

                            Item 3

                                SupportedBandEUTRA

                                    bandEUTRA: 17

                                    ...0 .... halfDuplex: False

                    measParameters

                        bandListEUTRA: 4 items

                            Item 0

                                BandInfoEUTRA

                                    interFreqBandList: 4 items

                                        Item 0

                                            InterFreqBandInfo

                                                .1.. .... interFreqNeedForGaps: True

                                        Item 1

                                            InterFreqBandInfo

                                                ..1. .... interFreqNeedForGaps: True

                                        Item 2

                                            InterFreqBandInfo

                                                ...1 .... interFreqNeedForGaps: True

                                        Item 3

                                            InterFreqBandInfo

                                                .... 1... interFreqNeedForGaps: True

                                    interRAT-BandList: 9 items

                                        Item 0

                                            InterRAT-BandInfo

                                                ...1 .... interRAT-NeedForGaps: True

                                        Item 1

                                            InterRAT-BandInfo

                                                .... 1... interRAT-NeedForGaps: True

                                        Item 2

                                            InterRAT-BandInfo

                                                .... .1.. interRAT-NeedForGaps: True

                                        Item 3

                                            InterRAT-BandInfo

                                                .... ..1. interRAT-NeedForGaps: True

                                        Item 4

                                            InterRAT-BandInfo

                                                .... ...1 interRAT-NeedForGaps: True

                                        Item 5

                                            InterRAT-BandInfo

                                                1... .... interRAT-NeedForGaps: True

                                        Item 6

                                            InterRAT-BandInfo

                                                .1.. .... interRAT-NeedForGaps: True

                                        Item 7

                                            InterRAT-BandInfo

                                                ..1. .... interRAT-NeedForGaps: True

                                        Item 8

                                            InterRAT-BandInfo

                                                ...1 .... interRAT-NeedForGaps: True

                            Item 1

                                BandInfoEUTRA

                                    interFreqBandList: 4 items

                                        Item 0

                                            InterFreqBandInfo

                                                ...1 .... interFreqNeedForGaps: True

                                        Item 1

                                            InterFreqBandInfo

                                                .... 1... interFreqNeedForGaps: True

                                        Item 2

                                            InterFreqBandInfo

                                                .... .1.. interFreqNeedForGaps: True

                                        Item 3

                                            InterFreqBandInfo

                                                .... ..1. interFreqNeedForGaps: True

                                    interRAT-BandList: 9 items

                                        Item 0

                                            InterRAT-BandInfo

                                                .... .1.. interRAT-NeedForGaps: True

                                        Item 1

                                            InterRAT-BandInfo

                                                .... ..1. interRAT-NeedForGaps: True

                                        Item 2

                                            InterRAT-BandInfo

                                                .... ...1 interRAT-NeedForGaps: True

                                        Item 3

                                            InterRAT-BandInfo

                                                1... .... interRAT-NeedForGaps: True

                                        Item 4

                                            InterRAT-BandInfo

                                                .1.. .... interRAT-NeedForGaps: True

                                        Item 5

                                            InterRAT-BandInfo

                                                ..1. .... interRAT-NeedForGaps: True

                                        Item 6

                                            InterRAT-BandInfo

                                                ...1 .... interRAT-NeedForGaps: True

                                        Item 7

                                            InterRAT-BandInfo

                                                .... 1... interRAT-NeedForGaps: True

                                        Item 8

                                            InterRAT-BandInfo

                                                .... .1.. interRAT-NeedForGaps: True

                            Item 2

                                BandInfoEUTRA

                                    interFreqBandList: 4 items

                                        Item 0

                                            InterFreqBandInfo

                                                .... .1.. interFreqNeedForGaps: True

                                        Item 1

                                            InterFreqBandInfo

                                                .... ..1. interFreqNeedForGaps: True

                                        Item 2

                                            InterFreqBandInfo

                                                .... ...1 interFreqNeedForGaps: True

                                        Item 3

                                            InterFreqBandInfo

                                                1... .... interFreqNeedForGaps: True

                                    interRAT-BandList: 9 items

                                        Item 0

                                            InterRAT-BandInfo

                                                .... ...1 interRAT-NeedForGaps: True

                                        Item 1

                                            InterRAT-BandInfo

                                                1... .... interRAT-NeedForGaps: True

                                        Item 2

                                            InterRAT-BandInfo

                                                .1.. .... interRAT-NeedForGaps: True

                                        Item 3

                                            InterRAT-BandInfo

                                                ..1. .... interRAT-NeedForGaps: True

                                        Item 4

                                            InterRAT-BandInfo

                                                ...1 .... interRAT-NeedForGaps: True

                                        Item 5

                                            InterRAT-BandInfo

                                                .... 1... interRAT-NeedForGaps: True

                                        Item 6

                                            InterRAT-BandInfo

                                                .... .1.. interRAT-NeedForGaps: True

                                        Item 7

                                            InterRAT-BandInfo

                                                .... ..1. interRAT-NeedForGaps: True

                                        Item 8

                                            InterRAT-BandInfo

                                                .... ...1 interRAT-NeedForGaps: True

                            Item 3

                                BandInfoEUTRA

                                    interFreqBandList: 4 items

                                        Item 0

                                            InterFreqBandInfo

                                                .... ...1 interFreqNeedForGaps: True

                                        Item 1

                                            InterFreqBandInfo

                                                1... .... interFreqNeedForGaps: True

                                        Item 2

                                            InterFreqBandInfo

                                                .1.. .... interFreqNeedForGaps: True

                                        Item 3

                                            InterFreqBandInfo

                                                ..1. .... interFreqNeedForGaps: True

                                    interRAT-BandList: 9 items

                                        Item 0

                                            InterRAT-BandInfo

                                                .1.. .... interRAT-NeedForGaps: True

                                        Item 1

                                            InterRAT-BandInfo

                                                ..1. .... interRAT-NeedForGaps: True

                                        Item 2

                                            InterRAT-BandInfo

                                                ...1 .... interRAT-NeedForGaps: True

                                        Item 3

                                            InterRAT-BandInfo

                                                .... 1... interRAT-NeedForGaps: True

                                        Item 4

                                            InterRAT-BandInfo

                                                .... .1.. interRAT-NeedForGaps: True

                                        Item 5

                                            InterRAT-BandInfo

                                                .... ..1. interRAT-NeedForGaps: True

                                        Item 6

                                            InterRAT-BandInfo

                                                .... ...1 interRAT-NeedForGaps: True

                                        Item 7

                                            InterRAT-BandInfo

                                                1... .... interRAT-NeedForGaps: True

                                        Item 8

                                            InterRAT-BandInfo

                                                .1.. .... interRAT-NeedForGaps: True

                    featureGroupIndicators: 7f0ffc80 [bit length 32, 0111 1111  0000 1111  1111 1100  1000 0000

                                                                     decimal value 2131754112]

                        0... .... = Indicator 1: Intra-subframe freq hopping for PUSCH scheduled by UL grant; DCI format 3a;

                                                 PDSCH transmission mode 5;

                                                 Aperiodic CQI/PMI/RI report on PUSCH: Mode 2-0 & 2-2 - Not supported

                        .1.. .... = Indicator 2: Simultaneous CQI & ACK/NACK on PUCCH (format 2a/2b);

                                                 Absolute TPC command for PUSCH; Resource alloc type 1 for PDSCH;

                                                 Periodic CQI/PMI/RI report on PUCCH: Mode 2-0 & 2-1 - Supported

                        ..1. .... = Indicator 3: 5bit RLC UM SN; 7bit PDCP SN - Supported

                        ...1 .... = Indicator 4: Short DRX cycle - Supported

                        .... 1... = Indicator 5: Long DRX cycle; DRX command MAC control element - Supported

                        .... .1.. = Indicator 6: Prioritised bit rate - Supported

                        .... ..1. = Indicator 7: RLC UM - Supported

                        .... ...1 = Indicator 8: EUTRA RRC_CONNECTED to UTRA CELL_DCH PS handover - Supported

                        0... .... = Indicator 9: EUTRA RRC_CONNECTED to GERAN GSM_Dedicated handover - Not Supported

                        .0.. .... = Indicator 10: EUTRA RRC_CONNECTED to GERAN (Packet_) Idle by Cell Change Order;

                                                  EUTRA RRC_CONNECTED to GERAN (Packet_) Idle by Cell Change Order with NACC

                                                                                                               - Not supported

                        ..0. .... = Indicator 11: EUTRA RRC_CONNECTED to CDMA2000 1xRTT CS Active handover - Not supported

                        ...0 .... = Indicator 12: EUTRA RRC_CONNECTED to CDMA2000 HRPD Active handover - Not supported

                        .... 1... = Indicator 13: Inter-frequency handover (within FDD or TDD) - Supported

                        .... .1.. = Indicator 14: Measurement reporting event: Event A4 - Neighbour > threshold;

                                                  Measurement reporting event: Event A5 - Serving < threshold1

                                                                                          & Neighbour > threshold2 - Supported

                        .... ..1. = Indicator 15: Measurement reporting event: Event B1 - Neighbour > threshold - Supported

                        .... ...1 = Indicator 16: non-ANR related periodical measurement reporting - Supported

                        1... .... = Indicator 17: ANR related intra-frequency measurement reporting events - Supported

                        .1.. .... = Indicator 18: ANR related inter-frequency measurement reporting events - Supported

                        ..1. .... = Indicator 19: ANR related inter-RAT measurement reporting events - Supported

                        ...1 .... = Indicator 20: SRB1 and SRB2 for DCCH + 8x AM DRB; SRB1 and SRB2 for DCCH + 5x AM DRB

                                                                         + 3x UM DRB (if indicator 7 is supported) - Supported

                        .... 1... = Indicator 21: Predefined intra- and inter-subframe frequency hopping for PUSCH with N_sb > 1;                                                   Predefined inter-subframe frequency hopping for PUSCH with N_sb > 1 - Supported

                        .... .1.. = Indicator 22: UTRAN measurements,

                                                  reporting and measurement reporting event B2 in E-UTRA connected mode - Supported

                        .... ..0. = Indicator 23: GERAN measurements,

                                                  reporting and measurement reporting event B2 in E-UTRA connected mode - Not supported

                        .... ...0 = Indicator 24: 1xRTT measurements,

                                                  reporting and measurement reporting event B2 in E-UTRA connected mode - Not supported

                        1... .... = Indicator 25: Inter-frequency measurements and reporting in E-UTRA connected mode - Supported

                        .0.. .... = Indicator 26: HRPD measurements,

                                                  reporting and measurement reporting event B2 in E-UTRA connected mode - Not supported

                        ..0. .... = Indicator 27: EUTRA RRC_CONNECTED to UTRA CELL_DCH CS handover - Not supported

                        ...0 .... = Indicator 28: TTI bundling - Not supported

                        .... 0... = Indicator 29: Semi-Persistent Scheduling - Not supported

                        .... .0.. = Indicator 30: Handover between FDD and TDD - Not supported

                        .... ..0. = Indicator 31: Undefined - Not supported

                        .... ...0 = Indicator 32: Undefined - Not supported

                    interRAT-Parameters

                        utraFDD

                            supportedBandListUTRA-FDD: 5 items

                                Item 0

                                    SupportedBandUTRA-FDD: bandI (0)

                                Item 1

                                    SupportedBandUTRA-FDD: bandII (1)

                                Item 2

                                    SupportedBandUTRA-FDD: bandIV (3)

                                Item 3

                                    SupportedBandUTRA-FDD: bandV (4)

                                Item 4

                                    SupportedBandUTRA-FDD: bandVI (5)

                        geran

                            supportedBandListGERAN: 4 items

                                Item 0

                                    SupportedBandGERAN: gsm850 (5)

                                Item 1

                                    SupportedBandGERAN: gsm900E (7)

                                Item 2

                                    SupportedBandGERAN: gsm1800 (9)

                                Item 3

                                    SupportedBandGERAN: gsm1900 (10)

                            ..0. .... interRAT-PS-HO-ToGERAN: False

                    nonCriticalExtension

                        phyLayerParameters-v920

                        interRAT-ParametersGERAN-v920

                            dtm-r9: supported (0)

                            e-RedirectionGERAN-r9: supported (0)

                        interRAT-ParametersUTRA-v920

                            e-RedirectionUTRA-r9: supported (0)

                        csg-ProximityIndicationParameters-r9

                        neighCellSI-AcquisitionParameters-r9

                        son-Parameters-r9

        Item 1

            UE-CapabilityRAT-Container

                rat-Type: utra (1)

                ueCapabilityRAT-Container: 40000bb8caab541a955aa22920c112000600054484291cfb...

                InterRATHandoverInfo

                    predefinedConfigStatusList: absent (0)

                        absent: NULL

                    uE-SecurityInformation: present (1)

                        present

                            start-CS: 000020 [bit length 20, 4 LSB pad bits, 0000 0000  0000 0000  0010 .... decimal value 2]

                    ue-CapabilityContainer: present (1)

                        present: 19556a8352ab54452418224000c000a89085239f7bf314cf...

                        UE-RadioAccessCapabilityInfo

                            ue-RadioAccessCapability

                                pdcp-Capability

                                    .0.. .... losslessSRNS-RelocationSupport: False

                                    supportForRfc2507: notSupported (0)

                                        notSupported: NULL

                                rlc-Capability

                                    totalRLC-AM-BufferSize: kb1000 (6)

                                    maximumRLC-WindowSize: mws2047 (0)

                                    maximumAM-EntityNumber: am16 (5)

                                transportChannelCapability

                                    dl-TransChCapability

                                        maxNoBitsReceived: b6400 (5)

                                        maxConvCodeBitsReceived: b6400 (5)

                                        turboDecodingSupport: supported (1)

                                            supported: b6400 (5)

                                        maxSimultaneousTransChs: e8 (1)

                                        maxSimultaneousCCTrCH-Count: 1

                                        maxReceivedTransportBlocks: tb32 (3)

                                        maxNumberOfTFC: tfc128 (5)

                                        maxNumberOfTF: tf64 (1)

                                    ul-TransChCapability

                                        maxNoBitsTransmitted: b6400 (5)

                                        maxConvCodeBitsTransmitted: b6400 (5)

                                        turboEncodingSupport: supported (1)

                                            supported: b6400 (5)

                                        maxSimultaneousTransChs: e8 (2)

                                        modeSpecificInfo: fdd (0)

                                            fdd: NULL

                                        maxTransmittedBlocks: tb32 (4)

                                        maxNumberOfTFC: tfc64 (5)

                                        maxNumberOfTF: tf64 (1)

                                rf-Capability

                                physicalChannelCapability

                                    fddPhysChCapability

                                        downlinkPhysChCapability

                                            maxNoDPCH-PDSCH-Codes: 1

                                            maxNoPhysChBitsReceived: b9600 (6)

                                            .... ..0. supportForSF-512: False

                                            .... ...0 dummy: False

                                            dummy2: notSupported (0)

                                                notSupported: NULL

                                        uplinkPhysChCapability

                                            maxNoDPDCH-BitsTransmitted: b9600 (4)

                                            .... .0.. dummy: False

                                ue-MultiModeRAT-Capability

                                    multiRAT-CapabilityList

                                        .... ..1. supportOfGSM: True

                                        .... ...0 supportOfMulticarrier: False

                                    multiModeCapability: fdd (1)

                                securityCapability

                                    cipheringAlgorithmCap: 0003 [bit length 16, 0000 0000  0000 0011 decimal value 3]

                                    integrityProtectionAlgorithmCap: 0002 [bit length 16, 0000 0000  0000 0010 decimal value 2]

                                ue-positioning-Capability

                                    ..1. .... standaloneLocMethodsSupported: True

                                    ...0 .... ue-BasedOTDOA-Supported: False

                                    networkAssistedGPS-Supported: bothNetworkAndUE-Based (2)

                                    .... ..0. supportForUE-GPS-TimingOfCellFrames: False

                                    .... ...0 supportForIPDL: False

                            ue-RadioAccessCapability-v370ext

                                ue-RadioAccessCapabBandFDDList: 5 items

                                    Item 0

                                        UE-RadioAccessCapabBandFDD

                                            radioFrequencyBandFDD: fdd2100 (0)

                                            fddRF-Capability

                                                ue-PowerClass: class3 (2)

                                                txRxFrequencySeparation: default-TxRx-separation (0)

                                            measurementCapability

                                                compressedModeMeasCapabFDDList: 5 items

                                                    Item 0

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd2100 (0)

                                                            .... ..1. dl-MeasurementsFDD: True

                                                            .... ...1 ul-MeasurementsFDD: True

                                                    Item 1

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd1900 (1)

                                                            .... 1... dl-MeasurementsFDD: True

                                                            .... .1.. ul-MeasurementsFDD: True

                                                    Item 2

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandV (5)

                                                            ..1. .... dl-MeasurementsFDD: True

                                                            ...1 .... ul-MeasurementsFDD: True

                                                    Item 3

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandVI (3)

                                                            1... .... dl-MeasurementsFDD: True

                                                            .1.. .... ul-MeasurementsFDD: True

                                                    Item 4

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandIV (4)

                                                            .... ..1. dl-MeasurementsFDD: True

                                                            .... ...1 ul-MeasurementsFDD: True

                                                compressedModeMeasCapabGSMList: 2 items

                                                    Item 0

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900E (4)

                                                            1... .... dl-MeasurementsGSM: True

                                                            .1.. .... ul-MeasurementsGSM: True

                                                    Item 1

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900P (3)

                                                            .... ..1. dl-MeasurementsGSM: True

                                                            .... ...1 ul-MeasurementsGSM: True

                                    Item 1

                                        UE-RadioAccessCapabBandFDD

                                            radioFrequencyBandFDD: fdd1900 (1)

                                            fddRF-Capability

                                                ue-PowerClass: class3 (2)

                                                txRxFrequencySeparation: default-TxRx-separation (0)

                                            measurementCapability

                                                compressedModeMeasCapabFDDList: 5 items

                                                    Item 0

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd2100 (0)

                                                            ...1 .... dl-MeasurementsFDD: True

                                                            .... 1... ul-MeasurementsFDD: True

                                                    Item 1

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd1900 (1)

                                                            .1.. .... dl-MeasurementsFDD: True

                                                            ..1. .... ul-MeasurementsFDD: True

                                                    Item 2

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandV (5)

                                                            .... ...1 dl-MeasurementsFDD: True

                                                            1... .... ul-MeasurementsFDD: True

                                                    Item 3

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandVI (3)

                                                            .... .1.. dl-MeasurementsFDD: True

                                                            .... ..1. ul-MeasurementsFDD: True

                                                    Item 4

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandIV (4)

                                                            ...1 .... dl-MeasurementsFDD: True

                                                            .... 1... ul-MeasurementsFDD: True

                                                compressedModeMeasCapabGSMList: 2 items

                                                    Item 0

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900E (4)

                                                            .... .1.. dl-MeasurementsGSM: True

                                                            .... ..1. ul-MeasurementsGSM: True

                                                    Item 1

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900P (3)

                                                            ...1 .... dl-MeasurementsGSM: True

                                                            .... 1... ul-MeasurementsGSM: True

                                    Item 2

                                        UE-RadioAccessCapabBandFDD

                                            radioFrequencyBandFDD: bandV (5)

                                            fddRF-Capability

                                                ue-PowerClass: class3 (2)

                                                txRxFrequencySeparation: default-TxRx-separation (0)

                                            measurementCapability

                                                compressedModeMeasCapabFDDList: 5 items

                                                    Item 0

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd2100 (0)

                                                            1... .... dl-MeasurementsFDD: True

                                                            .1.. .... ul-MeasurementsFDD: True

                                                    Item 1

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd1900 (1)

                                                            .... ..1. dl-MeasurementsFDD: True

                                                            .... ...1 ul-MeasurementsFDD: True

                                                    Item 2

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandV (5)

                                                            .... 1... dl-MeasurementsFDD: True

                                                            .... .1.. ul-MeasurementsFDD: True

                                                    Item 3

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandVI (3)

                                                            ..1. .... dl-MeasurementsFDD: True

                                                            ...1 .... ul-MeasurementsFDD: True

                                                    Item 4

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandIV (4)

                                                            1... .... dl-MeasurementsFDD: True

                                                            .1.. .... ul-MeasurementsFDD: True

                                                compressedModeMeasCapabGSMList: 2 items

                                                    Item 0

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900E (4)

                                                            ..1. .... dl-MeasurementsGSM: True

                                                            ...1 .... ul-MeasurementsGSM: True

                                                    Item 1

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900P (3)

                                                            1... .... dl-MeasurementsGSM: True

                                                            .1.. .... ul-MeasurementsGSM: True

                                    Item 3

                                        UE-RadioAccessCapabBandFDD

                                            radioFrequencyBandFDD: bandVI (3)

                                            fddRF-Capability

                                                ue-PowerClass: class3 (2)

                                                txRxFrequencySeparation: default-TxRx-separation (0)

                                            measurementCapability

                                                compressedModeMeasCapabFDDList: 5 items

                                                    Item 0

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd2100 (0)

                                                            .... .1.. dl-MeasurementsFDD: True

                                                            .... ..1. ul-MeasurementsFDD: True

                                                    Item 1

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd1900 (1)

                                                            ...1 .... dl-MeasurementsFDD: True

                                                            .... 1... ul-MeasurementsFDD: True

                                                    Item 2

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandV (5)

                                                            .1.. .... dl-MeasurementsFDD: True

                                                            ..1. .... ul-MeasurementsFDD: True

                                                    Item 3

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandVI (3)

                                                            .... ...1 dl-MeasurementsFDD: True

                                                            1... .... ul-MeasurementsFDD: True

                                                    Item 4

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandIV (4)

                                                            .... .1.. dl-MeasurementsFDD: True

                                                            .... ..1. ul-MeasurementsFDD: True

                                                compressedModeMeasCapabGSMList: 2 items

                                                    Item 0

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900E (4)

                                                            .... ...1 dl-MeasurementsGSM: True

                                                            1... .... ul-MeasurementsGSM: True

                                                    Item 1

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900P (3)

                                                            .... .1.. dl-MeasurementsGSM: True

                                                            .... ..1. ul-MeasurementsGSM: True

                                    Item 4

                                        UE-RadioAccessCapabBandFDD

                                            radioFrequencyBandFDD: bandIV (4)

                                            fddRF-Capability

                                                ue-PowerClass: class3 (2)

                                                txRxFrequencySeparation: default-TxRx-separation (0)

                                            measurementCapability

                                                compressedModeMeasCapabFDDList: 5 items

                                                    Item 0

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd2100 (0)

                                                            ..1. .... dl-MeasurementsFDD: True

                                                            ...1 .... ul-MeasurementsFDD: True

                                                    Item 1

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: fdd1900 (1)

                                                            1... .... dl-MeasurementsFDD: True

                                                            .1.. .... ul-MeasurementsFDD: True

                                                    Item 2

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandV (5)

                                                            .... ..1. dl-MeasurementsFDD: True

                                                            .... ...1 ul-MeasurementsFDD: True

                                                    Item 3

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandVI (3)

                                                            .... 1... dl-MeasurementsFDD: True

                                                            .... .1.. ul-MeasurementsFDD: True

                                                    Item 4

                                                        CompressedModeMeasCapabFDD

                                                            radioFrequencyBandFDD: bandIV (4)

                                                            ..1. .... dl-MeasurementsFDD: True

                                                            ...1 .... ul-MeasurementsFDD: True

                                                compressedModeMeasCapabGSMList: 2 items

                                                    Item 0

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900E (4)

                                                            .... 1... dl-MeasurementsGSM: True

                                                            .... .1.. ul-MeasurementsGSM: True

                                                    Item 1

                                                        CompressedModeMeasCapabGSM

                                                            radioFrequencyBandGSM: gsm900P (3)

                                                            ..1. .... dl-MeasurementsGSM: True

                                                            ...1 .... ul-MeasurementsGSM: True

                    v390NonCriticalExtensions: present (1)

                                                present

                            interRATHandoverInfo-v390ext

                                ue-RadioAccessCapability-v380ext

                                    ue-PositioningCapabilityExt-v380

                                        0... .... rx-tx-TimeDifferenceType2Capable: False

                                dl-PhysChCapabilityFDD-v380ext

                            v3a0NonCriticalExtensions

                                interRATHandoverInfo-v3a0ext

                                    ue-RadioAccessCapability-v3a0ext

                                        ue-PositioningCapabilityExt-v3a0

                                            validity-CellPCH-UraPCH: true (0)

                                laterNonCriticalExtensions

                                    interRATHandoverInfo-v3d0ext

                                    interRATHandoverInfo-r3-add-ext: 9c [bit length 8, 1001 1100 decimal value 156]

                                        InterRATHandoverInfo-r3-add-ext-IEs

                                            interRATHandoverInfo-v690ext1

                                            v7e0NonCriticalExtensions

                                                interRATHandoverInfo-v7e0ext

                                                    ue-RadioAccessCapability

                                                        supportForTwoDRXSchemesInPCH: true (0)

                                                        supportEDPDCHPowerInterpolation: true (0)

                                    v3g0NonCriticalExtensions

                                        interRATHandoverInfo-v3g0ext

                                        v4b0NonCriticalExtensions

                                            interRATHandoverInfo-v4b0ext

                                                accessStratumReleaseIndicator: rel-8 (4)

                                            v4d0NonCriticalExtensions

                                                interRATHandoverInfo-v4d0ext

                                                v590NonCriticalExtensions

                                                    interRATHandoverInfo-v590ext

                                                    v690NonCriticalExtensions

                                                        interRATHandoverInfo-v690ext

                                                            ue-SecurityInformation2

                                                                start-PS: 000000 [bit length 20,

                                                                        4 LSB pad bits, 0000 0000  0000 0000  0000 .... decimal value 0]

                                                            ue-RadioAccessCapabilityComp2

                                                                fddPhysicalChannelCapab-hspdsch-edch

                                                                    dl-CapabilityWithSimultaneousHS-DSCHConfig: kbps64 (1)

                                                                    physicalChannelCapabComp-hspdsch-r6: 10

                                                                    physicalChannelCapability-edch-r6

                                                                        fdd-edch: supported (0)

                                                                            supported

                                                                                edch-PhysicalLayerCategory: 6

                                                        v6b0NonCriticalExtensions

                                                            interRATHandoverInfo-v6b0ext

                                                            v6e0NonCriticalExtensions

                                                                interRATHandoverInfo-v6e0ext

                                                                    supportForFDPCH: true (0)

                                                                v770NonCriticalExtensions

                                                                    interRATHandoverInfo-v770ext

                                                                        ue-RadioAccessCapabilityInfo

                                                                            physicalChannelCapability

                                                                            mac-ehsSupport: true (0)

                                                                        ue-RadioAccessCapabilityComp2

                                                                            hsdsch-physical-layer-category-ext: 14

                                                                    v790nonCriticalExtensions

                                                                        interRATHandoverInfo-v790ext

                                                                        v860NonCriticalExtensions

                                                                            interRATHandoverInfo-v860ext

                                                                                ue-RadioAccessCapabilityInfo

                                                                                    ue-RadioAccessCapabBandFDDList3: 5 items

                                                                                        Item 0

                                                                                            UE-RadioAccessCapabBandFDD3

                                                                                                radioFrequencyBandFDD: fdd2100 (0)

                                                                                                measurementCapability3

                                                                                                    compressedModeMeasCapabEUTRAList:

                                                                                                                              4 items

                                                                                                        Item 0

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 2

                                                                                                                .... .1.. compressedMode: True

                                                                                                        Item 1

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 4

                                                                                                                .... 1... compressedMode: True

                                                                                                        Item 2

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 5

                                                                                                                ...1 .... compressedMode: True

                                                                                                        Item 3

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 17

                                                                                                                ..1. .... compressedMode: True

                                                                                        Item 1

                                                                                            UE-RadioAccessCapabBandFDD3

                                                                                                radioFrequencyBandFDD: fdd1900 (1)

                                                                                                measurementCapability3

                                                                                                    compressedModeMeasCapabEUTRAList: 4 items

                                                                                                        Item 0

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 2

                                                                                                                ...1 .... compressedMode: True

                                                                                                        Item 1

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 4

                                                                                                                ..1. .... compressedMode: True

                                                                                                        Item 2

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 5

                                                                                                                .1.. .... compressedMode: True

                                                                                                        Item 3

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 17

                                                                                                                1... .... compressedMode: True

                                                                                        Item 2

                                                                                            UE-RadioAccessCapabBandFDD3

                                                                                                radioFrequencyBandFDD: bandV (5)

                                                                                                measurementCapability3

                                                                                                    compressedModeMeasCapabEUTRAList: 4 items

                                                                                                        Item 0

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 2

                                                                                                                .1.. .... compressedMode: True

                                                                                                        Item 1

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 4

                                                                                                                1... .... compressedMode: True

                                                                                                        Item 2

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 5

                                                                                                                .... ...1 compressedMode: True

                                                                                                        Item 3

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 17

                                                                                                                .... ..1. compressedMode: True

                                                                                        Item 3

                                                                                            UE-RadioAccessCapabBandFDD3

                                                                                                radioFrequencyBandFDD: bandVI (3)

                                                                                                measurementCapability3

                                                                                                    compressedModeMeasCapabEUTRAList: 4 items

                                                                                                        Item 0

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 2

                                                                                                                .... ...1 compressedMode: True

                                                                                                        Item 1

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 4

                                                                                                                .... ..1. compressedMode: True

                                                                                                        Item 2

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 5

                                                                                                                .... .1.. compressedMode: True

                                                                                                        Item 3

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 17

                                                                                                                .... 1... compressedMode: True

                                                                                        Item 4

                                                                                            UE-RadioAccessCapabBandFDD3

                                                                                                radioFrequencyBandFDD: bandIV (4)

                                                                                                measurementCapability3

                                                                                                    compressedModeMeasCapabEUTRAList: 4 items

                                                                                                        Item 0

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 2

                                                                                                                .... .1.. compressedMode: True

                                                                                                        Item 1

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 4

                                                                                                                .... 1... compressedMode: True

                                                                                                        Item 2

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 5

                                                                                                                ...1 .... compressedMode: True

                                                                                                        Item 3

                                                                                                            CompressedModeMeasCapabEUTRA

                                                                                                                radioFrequencyBandEUTRA: 17

                                                                                                                ..1. .... compressedMode: True

                                                                                ue-RadioAccessCapabilityComp2

                                                                                    hsdsch-physical-layer-category-ext2: 24
