URA (Uniform Rectangular Array)



It is required to have Matlab Antenna Toolbox to run the examples shown here.



All the sample plots shown here are based on the code URA_Basic_01.m which use Isotropic Antenna as elements of the antenna array. If you want to use different type of antenna element (e.g, CrossedDipole), you may specify the Antenna Element as shown in URA_Basic_02.m.





URA_Basic_01.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txarray = phased.URA('Size',[8 8],'ElementSpacing',[lambda/2 lambda/2]);

txarray.Element.BackBaffled = true;



pattern(txarray,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB')





URA_Basic_02.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



antennaElement = phased.CrossedDipoleAntennaElement;

txarray = phased.URA('Size',[8 8],'ElementSpacing',[lambda/2 lambda/2] ...

                    ,'Element',antennaElement);

txarray.Element.Polarization = 'RHCP';

txarray.Element.RotationAngle = 0;



pattern(txarray,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB')





'Type','powerdB'





'Type','efield'





'Type','power'

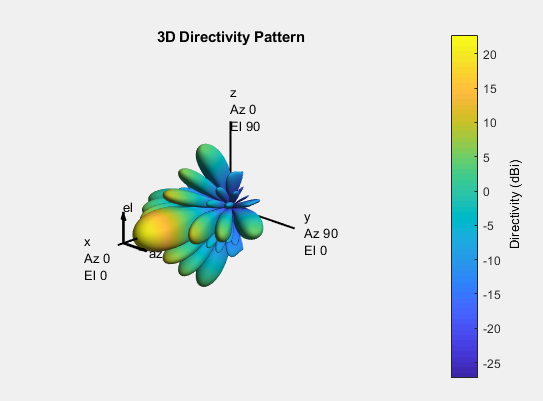

'Type','directivity'







URA_Basic_02.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength

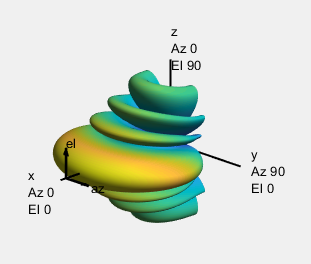

txarray = phased.URA('Size',[8 2],'ElementSpacing',[lambda/2 lambda/2]);

txarray.Element.BackBaffled = true;



pattern(txarray,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB')

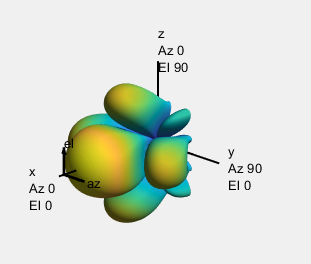

'Size',[2 2]

'Size',[4 4]

'Size',[8 8]

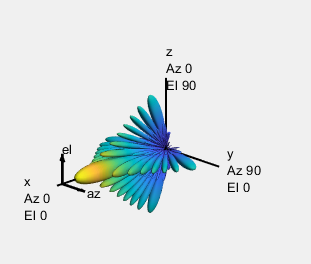

'Size',[16 16]





'Size',[4 2]

'Size',[2 4]





'Size',[8 2]

'Size',[2 8]







URA_Basic_03.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength

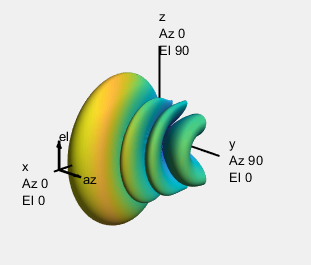

txarray = phased.URA('Size',[2 8],'ElementSpacing',[lambda/2 lambda/2]);

txarray.Element.BackBaffled = true;

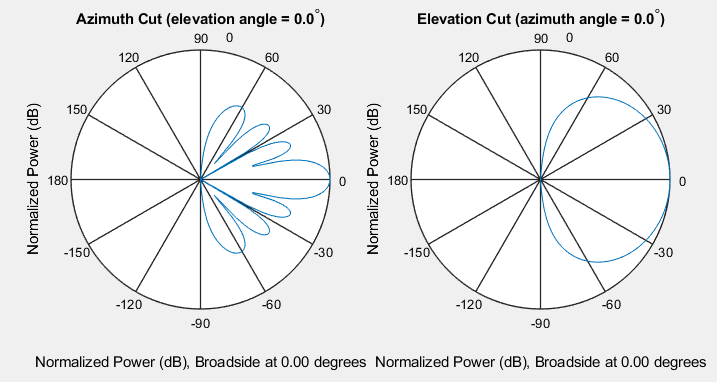

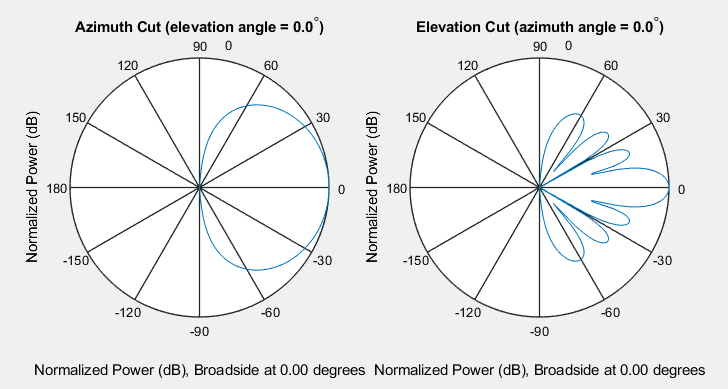

subplot(1,2,1);

pattern(txarray,fc,[-180:180],0,...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB')



subplot(1,2,2);

pattern(txarray,fc,0,[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB')





'Size',[8 2]





'Size',[2 8]

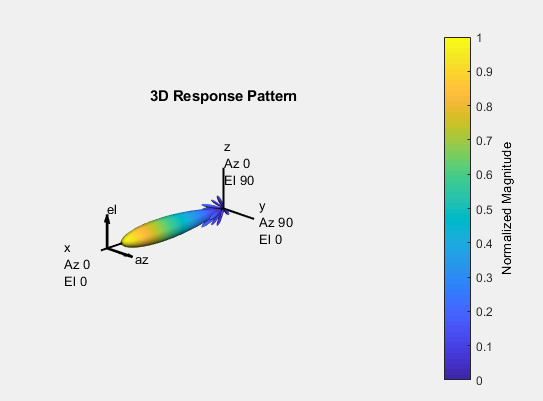

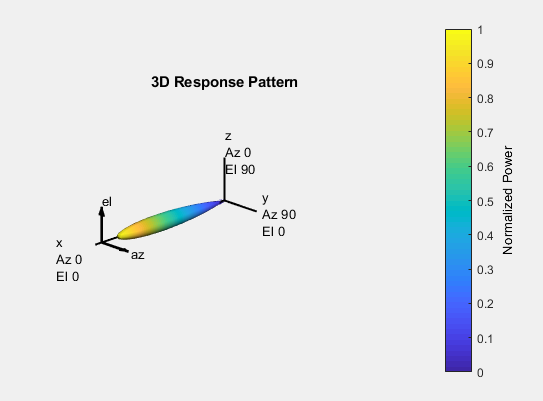

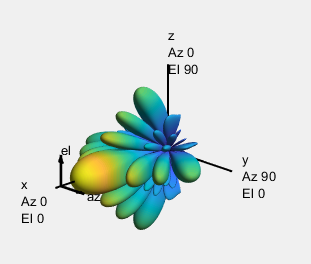

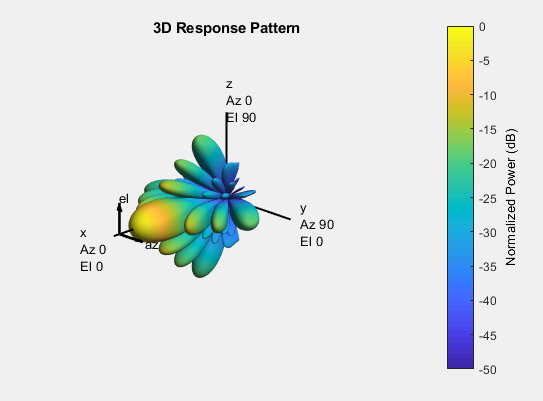

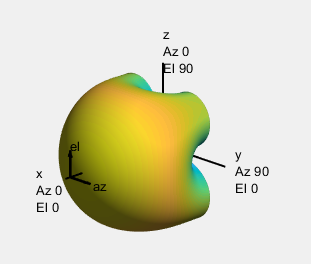

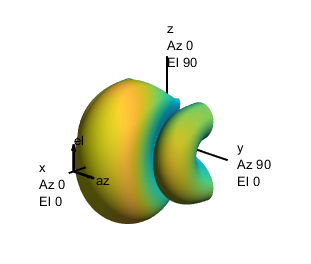

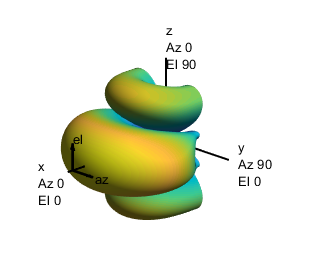

Steering of URA in 3D Pattern





URA_Basic_04.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txarray = phased.URA('Size',[8 2],'ElementSpacing',[lambda/2 lambda/2]);

txarray.Element.BackBaffled = true;



steer_ang = [0;0];

stv = phased.SteeringVector('SensorArray',txarray);

w = stv(fc,steer_ang);



pattern(txarray,fc,[-180:180],[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdB', ...

    'Weights',w)



view(90,0);,'polar',...

    'Type','powerdB')





BackBaffled = true;

steer_ang = [0;-15];

'Type','powerdB'

view(90,0);

BackBaffled = true;

steer_ang = [0;0];

'Type','powerdB'

view(90,0);

BackBaffled = true;

steer_ang = [0;15];

'Type','powerdB'

view(90,0);





BackBaffled = true;

steer_ang = [0;30];

'Type','powerdB'

view(90,0);

BackBaffled = true;

steer_ang = [0;45];

'Type','powerdB'

view(90,0);

BackBaffled = true;

steer_ang = [0;60];

'Type','powerdB'

view(90,0);







BackBaffled = true;

steer_ang = [0;-15];

'Type','powerdB'

view(90,0);

BackBaffled = true;

steer_ang = [0;0];

'Type','powerdB'

view(90,0);

BackBaffled = true;

steer_ang = [0;15];

'Type','powerdB'

view(90,0);





BackBaffled = true;

steer_ang = [0;30];

'Type','power'

view(90,0);

BackBaffled = true;

steer_ang = [0;45];

'Type','power'

view(90,0);

BackBaffled = true;

steer_ang = [0;60];

'Type','power'

view(90,0);





BackBaffled = true;

steer_ang = [0;30];

'Type','power'

view(-50,-10);

BackBaffled = true;

steer_ang = [0;45];

'Type','power'

view(-50,-10);

BackBaffled = true;

steer_ang = [0;60];

'Type','power'

view(-50,-10);





BackBaffled = true;

steer_ang = [0;30];

'Type','power'

view(-50,-10);

BackBaffled = true;

steer_ang = [0;45];

'Type','power'

view(-50,-10);

BackBaffled = true;

steer_ang = [0;60];

'Type','power'

view(-50,-10);

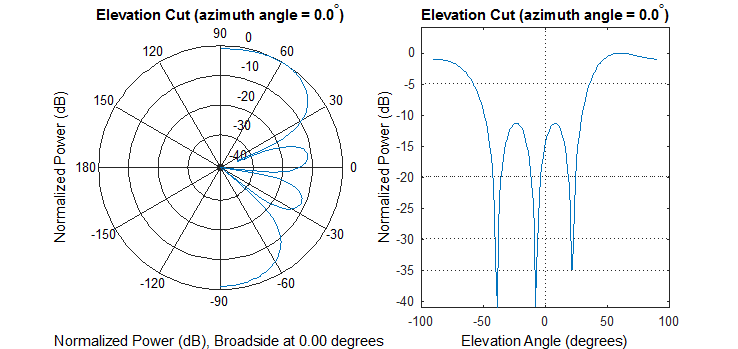

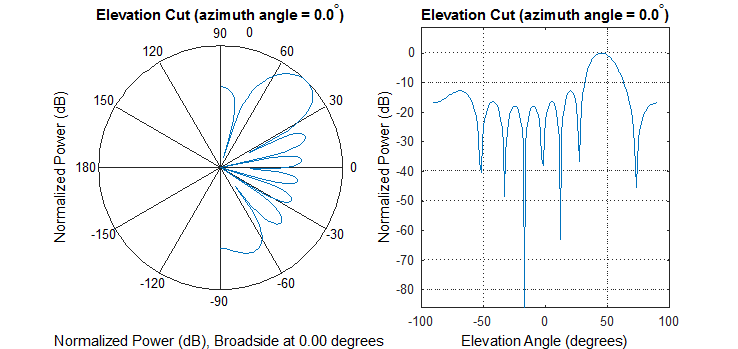

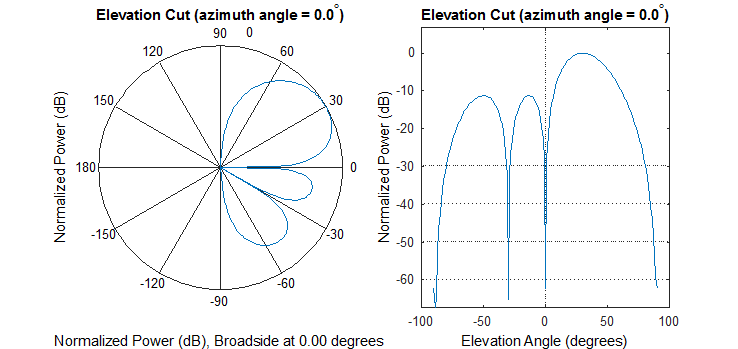

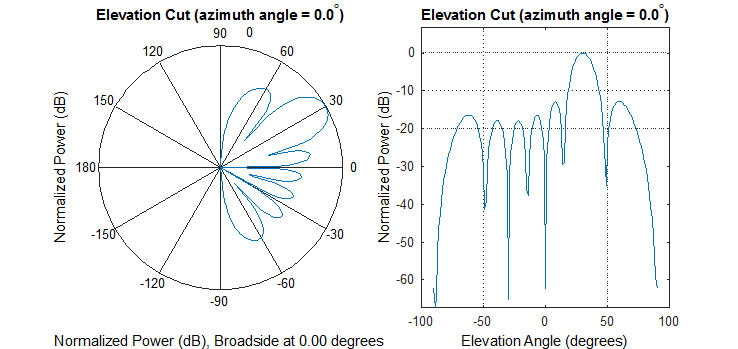

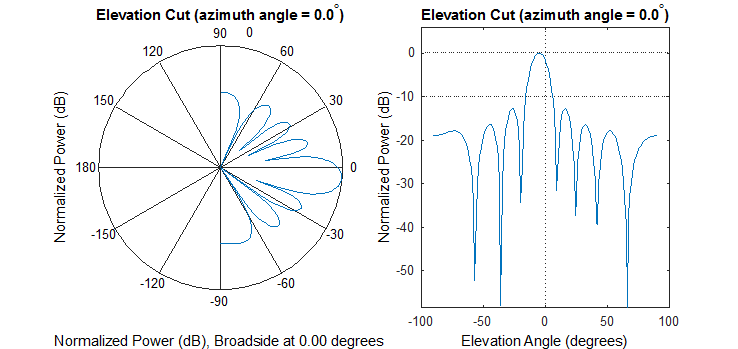

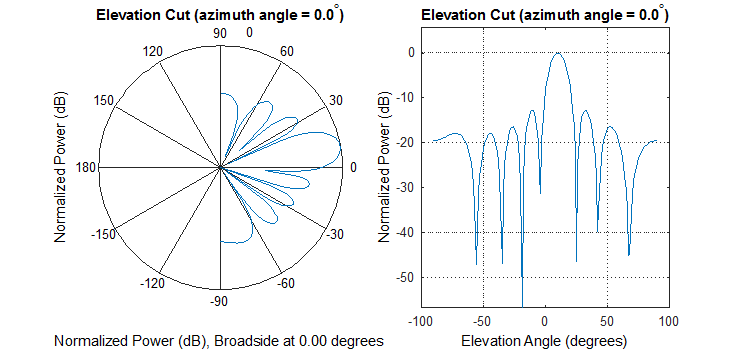

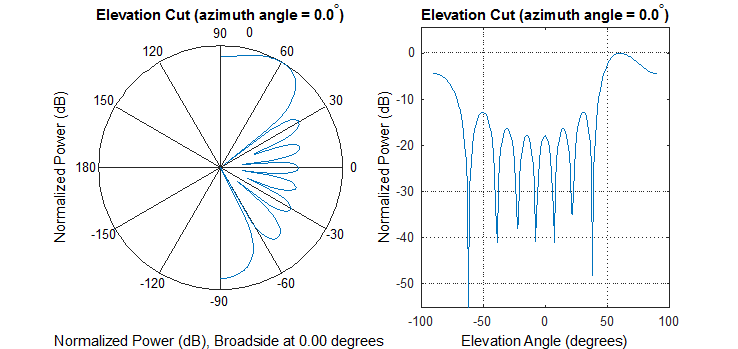

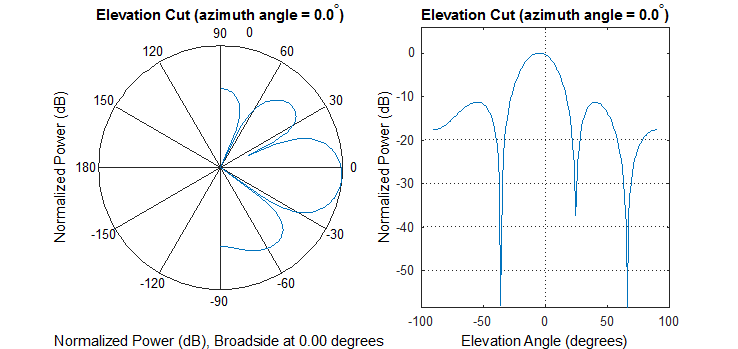

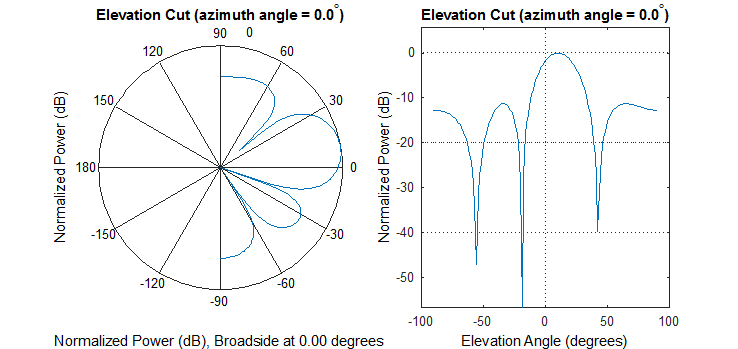

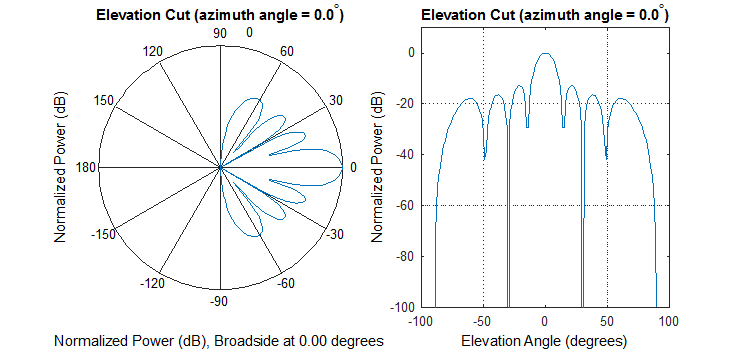

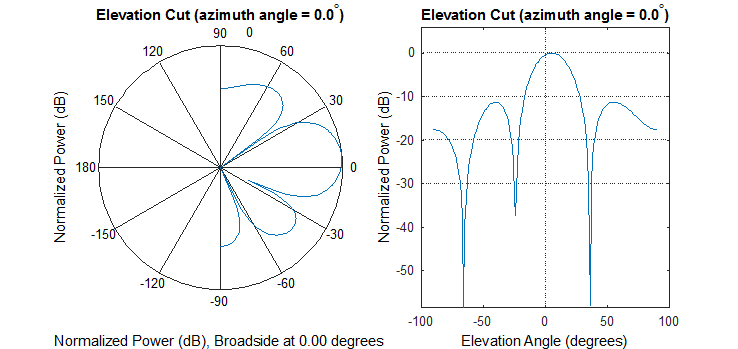

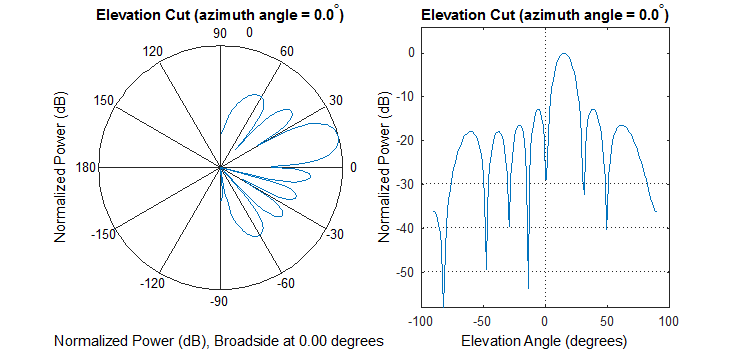

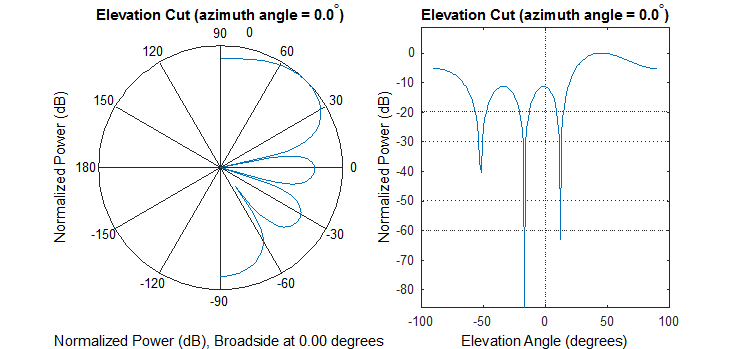

Steering of URA in 2D Pattern





URA_Basic_05.m

c = 3e8;        % propagation speed

fc = 26e9;      % carrier frequency

lambda = c/fc;  % wavelength



txarray = phased.URA('Size',[8 2],'ElementSpacing',[lambda/2 lambda/2]);

txarray.Element.BackBaffled = false;



steer_ang = [0;10];

stv = phased.SteeringVector('SensorArray',txarray);

w = stv(fc,steer_ang);

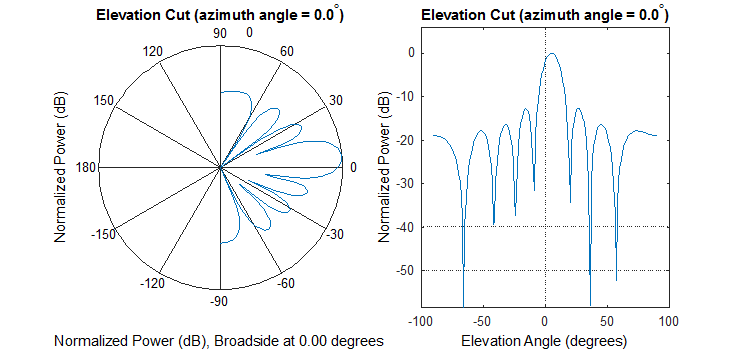

subplot(1,2,1);

pattern(txarray,fc,0,[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','polar',...

    'Type','powerdb', ...

    'Weights',w)



subplot(1,2,2);

pattern(txarray,fc,0,[-90:90],...

    'PropagationSpeed',c,...

    'CoordinateSystem','rectangular',...

    'Type','powerdb', ...

    'Weights',w)





set(gcf, 'Position', [200, 200, 740, 350])





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;-5];

'Type','powerdB'





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;0];

'Type','powerdB'





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;-5];

'Type','powerdB'





'Size',[8 2]

BackBaffled =false;

steer_ang = [0;10];

'Type','powerdB'





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;15];

'Type','powerdB'





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;30];

'Type','powerdB'





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;45];

'Type','powerdB'





'Size',[8 2]

BackBaffled = false;

steer_ang = [0;60];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

steer_ang = [0;-5];

'Type','powerdB'

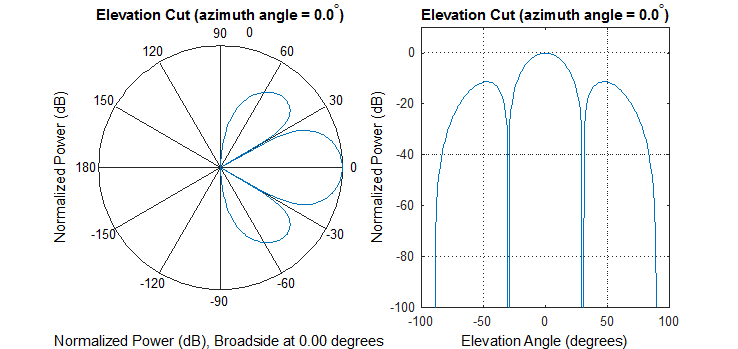

'Size',[4 2]

BackBaffled = false;

steer_ang = [0;0];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

steer_ang = [0;5];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

steer_ang = [0;10];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

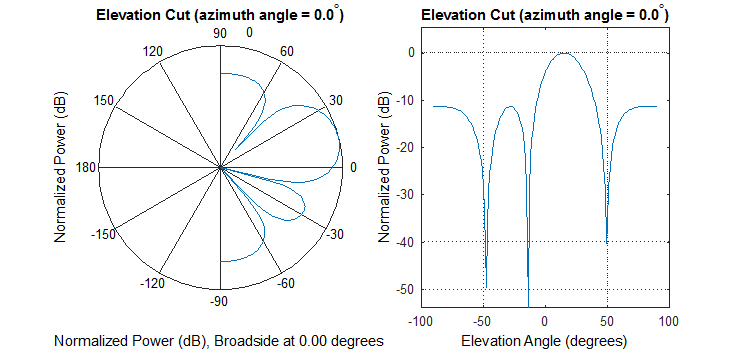

steer_ang = [0;15];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

steer_ang = [0;30];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

steer_ang = [0;45];

'Type','powerdB'





'Size',[4 2]

BackBaffled = false;

steer_ang = [0;-5];

'Type','powerdB'
