Python - Decoding IPv4 Header
NOTE 1 : All the examples in this page are written in Python 3.x. It may not work if you use Pyton 2.x
NOTE 2 : All the examples in this page are assumed to be written/run on Windows 7 unless specifically mentioned. You MAY (or may not) need to modify the syntax a little bit if you are running on other operating system.
Example 01 > ========================================================
This example will show you the very simple and straightfoward way to decode IPv6 header. This example is designed for getting familiar with structure of IPv6 header and number/string manipulation in Python. I don't think this is very efficient code, but it would be very simple/easy to understand.
For simplicity, I gave a precaptured IPv6 byte array to decode. But if you can combine the skills explained in Raw Packet : IPv4 page, you can modify the code so that the script can decode IPv6 header directly from a network card.

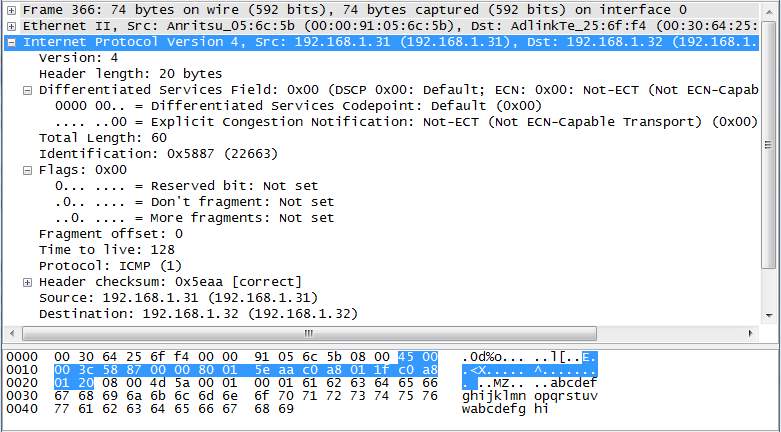

The purpose of this example is to decode Byte Array marked in Red in the wireshark log shown below. Compare the program output with Wireshark log.
If you understand only a few Python syntax, you would be able to read the code directly. Followings are some syntax you may refer to if you have difficulties understanding this code.
- IPv4 IP Header (I recommend you to print out this section for your coding)
- Convert a ByteArray into a Long Integer and convert it into Binary
- Cut out a segment from a String
- Formating a Number - '{format}'.format(number)
# Following is the source code for this example. Understanding this code is very simple.
import binascii
def decodeIPv4Header(pktBytes) :
headerLength = 20
headerBytes = pktBytes[0:headerLength]
headerInt = int.from_bytes(headerBytes, 'big')
headerBin = '{0:0{1}b}'.format(headerInt,headerLength*8)
#print("Header in Binary = ",headerBin)
print("IPv4 Header ==============================================")
version = int(headerBin[0:4],2)
print("Version : ",version)
ihl = int(headerBin[4:8],2)
print("Header Length : ",ihl * 4,"(Bytes)")
dscp = int(headerBin[8:14],2)
print("DSCP (Differentiated Services Code Point) : ",headerBin[8:14],"(Bin)")
ecn = int(headerBin[14:16],2)
print("ECN(Explicit Congestion Notification) : ",headerBin[14:16],"(Bin)")
totalLength = int(headerBin[16:32],2)
print("Total Length : ",totalLength,"(Dec) :", totalLength)
identification = int(headerBin[32*1:32*1+16],2)
print("Identification : ",'{0:#x}'.format(identification),"(Hex),", identification,"(Dec)")
flags = int(headerBin[32*1+16:32*1+18],2)
print("flags : ",headerBin[32*1+16:32*1+18],"(Bin)")
fragmentOffset = int(headerBin[32*1+19:32*1+32],2)
print("Fragment Offset : ",fragmentOffset,"(Dec)")
ttl = int(headerBin[32*2:32*2+8],2)
print("Time To Live (TTL) : ",ttl,"(Dec)")
protocol = int(headerBin[32*2+8:32*2+16],2)
print("Protocol : ",protocol,"(Dec) : ", ProtocolKeyword(protocol))
checkSum = int(headerBin[32*2+16:32*2+32],2)
print("Header Checksum : ",'{0:#x}'.format(checkSum),"(Hex)")
srcAddString = '{0:d}'.format(int(headerBin[3*32:3*32+8],2))
srcAddString = srcAddString + "." + '{0:d}'.format(int(headerBin[3*32+8:3*32+16],2))
srcAddString = srcAddString + "." + '{0:d}'.format(int(headerBin[3*32+16:3*32+24],2))
srcAddString = srcAddString + "." + '{0:d}'.format(int(headerBin[3*32+24:3*32+32],2))
print("Source : ",srcAddString)
dstAddString = '{0:d}'.format(int(headerBin[4*32:4*32+8],2))
dstAddString = dstAddString + "." + '{0:d}'.format(int(headerBin[4*32+8:4*32+16],2))
dstAddString = dstAddString + "." + '{0:d}'.format(int(headerBin[4*32+16:4*32+24],2))
dstAddString = dstAddString + "." + '{0:d}'.format(int(headerBin[4*32+24:4*32+32],2))
print("Destination : ",dstAddString)
payloadLen = len(pktBytes)-(ihl * 4)
return payloadLen,protocol
def ProtocolKeyword(protocolIndex):
switcher = {
0:"HOPOPT", #IPv6 Hop-by-Hop Option
1: "ICMP", #Internet Control Message Protocol
2: "IGMP", #Internet Group Management Protocol
3: "GGP", #Gateway-to-Gateway Protocol
4: "IP-in-IP", #IP in IP (encapsulation)
5: "ST", #Internet Stream Protocol
6: "TCP", #Transmission Control Protocol
7: "CBT", #Core-based trees
8: "EGP", #Exterior Gateway Protocol
9: "IGP", #Interior Gateway Protocol (any private interior gateway (used by Cisco for their IGRP))
10: "BBN-RCC-MON", #BBN RCC Monitoring
11: "NVP-II", #Network Voice Protocol
12: "PUP", #Xerox PUP
13: "ARGUS", #ARGUS
14: "EMCON", #EMCON
15: "XNET", #Cross Net Debugger
16: "CHAOS", #Chaos
17: "UDP", #User Datagram Protocol
18: "MUX", #Multiplexing
19: "DCN-MEAS", #DCN Measurement Subsystems
20: "HMP", #Host Monitoring Protocol
21: "PRM", #Packet Radio Measurement
22: "XNS-IDP", #XEROX NS IDP
23: "TRUNK-1", #Trunk-1
24: "TRUNK-2", #Trunk-2
25: "LEAF-1", #Leaf-1
26: "LEAF-2", #Leaf-2
27: "RDP", #Reliable Datagram Protocol
28: "IRTP", #Internet Reliable Transaction Protocol
29: "ISO-TP4", #ISO Transport Protocol Class 4
30: "NETBLT", #Bulk Data Transfer Protocol
31: "MFE-NSP", #MFE Network Services Protocol
32: "MERIT-INP", #MERIT Internodal Protocol
33: "DCCP", #Datagram Congestion Control Protocol
34: "3PC", #Third Party Connect Protocol
35: "IDPR", #Inter-Domain Policy Routing Protocol
36: "XTP", #Xpress Transport Protocol
37: "DDP", #Datagram Delivery Protocol
38: "IDPR-CMTP", #IDPR Control Message Transport Protocol
39: "TP++", #TP++ Transport Protocol
40: "IL", #IL Transport Protocol
41: "IPv6", #IPv6 Encapsulation
42: "SDRP", #Source Demand Routing Protocol
43: "IPv6-Route", #Routing Header for IPv6
44: "IPv6-Frag", #Fragment Header for IPv6
45: "IDRP", #Inter-Domain Routing Protocol
46: "RSVP", #Resource Reservation Protocol
47: "GRE", #Generic Routing Encapsulation
48: "MHRP", #Mobile Host Routing Protocol
49: "BNA", #BNA
50: "ESP", #Encapsulating Security Payload
51: "AH", #Authentication Header
52: "I-NLSP", #Integrated Net Layer Security Protocol
53: "SWIPE", #SwIPe
54: "NARP", #NBMA Address Resolution Protocol
55: "MOBILE", #IP Mobility (Min Encap)
56: "TLSP", #Transport Layer Security Protocol (using Kryptonet key management)
57: "SKIP", #Simple Key-Management for Internet Protocol
58: "IPv6-ICMP", #ICMP for IPv6
59: "IPv6-NoNxt", #No Next Header for IPv6
60: "IPv6-Opts", #Destination Options for IPv6
62: "CFTP", #CFTP
64: "SAT-EXPAK", #SATNET and Backroom EXPAK
65: "KRYPTOLAN", #Kryptolan
66: "RVD", #MIT Remote Virtual Disk Protocol
67: "IPPC", #Internet Pluribus Packet Core
69: "SAT-MON", #SATNET Monitoring
70: "VISA", #VISA Protocol
71: "IPCU", #Internet Packet Core Utility
72: "CPNX", #Computer Protocol Network Executive
73: "CPHB", #Computer Protocol Heart Beat
74: "WSN", #Wang Span Network
75: "PVP", #Packet Video Protocol
76: "BR-SAT-MON", #Backroom SATNET Monitoring
77: "SUN-ND", #SUN ND PROTOCOL-Temporary
78: "WB-MON", #WIDEBAND Monitoring
79: "WB-EXPAK", #WIDEBAND EXPAK
80: "ISO-IP", #International Organization for Standardization Internet Protocol
81: "VMTP", #Versatile Message Transaction Protocol
82: "SECURE-VMTP", #Secure Versatile Message Transaction Protocol
83: "VINES", #VINES
84: "TTP", #TTP
84: "IPTM", #Internet Protocol Traffic Manager
85: "NSFNET-IGP", #NSFNET-IGP
86: "DGP", #Dissimilar Gateway Protocol
87: "TCF", #TCF
88: "EIGRP", #EIGRP
89: "OSPF", #Open Shortest Path First
90: "Sprite-RPC", #Sprite RPC Protocol
91: "LARP", #Locus Address Resolution Protocol
92: "MTP", #Multicast Transport Protocol
93: "AX.25", #AX.25
94: "IPIP", #IP-within-IP Encapsulation Protocol
95: "MICP", #Mobile Internetworking Control Protocol
96: "SCC-SP", #Semaphore Communications Sec. Pro
97: "ETHERIP", #Ethernet-within-IP Encapsulation
98: "ENCAP", #Encapsulation Header
99: "*", #Any private encryption scheme
100: "GMTP", #GMTP
101: "IFMP", #Ipsilon Flow Management Protocol
102: "PNNI", #PNNI over IP
103: "PIM", #Protocol Independent Multicast
104: "ARIS", #IBM's ARIS (Aggregate Route IP Switching) Protocol
105: "SCPS", #SCPS (Space Communications Protocol Standards)
106: "QNX", #QNX
107: "A/N", #Active Networks
108: "IPComp", #IP Payload Compression Protocol
109: "SNP", #Sitara Networks Protocol
110: "Compaq-Peer", #Compaq Peer Protocol
111: "IPX-in-IP", #IPX in IP
112: "VRRP", #Virtual Router Redundancy Protocol, Common Address Redundancy Protocol (not IANA assigned)
113: "PGM", #PGM Reliable Transport Protocol
114: "*", #Any 0-hop protocol
115: "L2TP", #Layer Two Tunneling Protocol Version 3
116: "DDX", #D-II Data Exchange (DDX)
117: "IATP", #Interactive Agent Transfer Protocol
118: "STP", #Schedule Transfer Protocol
119: "SRP", #SpectraLink Radio Protocol
120: "UTI", #Universal Transport Interface Protocol
121: "SMP", #Simple Message Protocol
122: "SM", #Simple Multicast Protocol
123: "PTP", #Performance Transparency Protocol
124: "IS-IS over IPv4", #Intermediate System to Intermediate System (IS-IS) Protocol over IPv4
125: "FIRE", #Flexible Intra-AS Routing Environment
126: "CRTP", #Combat Radio Transport Protocol
127: "CRUDP", #Combat Radio User Datagram
128: "SSCOPMCE", #Service-Specific Connection-Oriented Protocol in a Multilink and Connectionless Environment
129: "IPLT",
130: "SPS", #Secure Packet Shield
131: "PIPE", #Private IP Encapsulation within IP
132: "SCTP", #Stream Control Transmission Protocol
133: "FC", #Fibre Channel
134: "RSVP-E2E-IGNORE", #Reservation Protocol (RSVP) End-to-End Ignore
135: "Mobility Header", #Mobility Extension Header for IPv6
136: "UDPLite", #Lightweight User Datagram Protocol
137: "MPLS-in-IP", #Multiprotocol Label Switching Encapsulated in IP
138: "manet", #MANET Protocols
139: "HIP", #Host Identity Protocol
140: "Shim6", #Site Multihoming by IPv6 Intermediation
141: "WESP", #Wrapped Encapsulating Security Payload
142: "ROHC", #Robust Header Compression
}
return switcher.get(protocolIndex, "nothing")
# Beginning of Main Routine
ByteAry = b'\x45\x00\x00\x3C\x58\x87\x00\x00\x80\x01\x5E\xAA\xC0\xA8\x01\x1F\xC0\xA8\x01\x20\x08\x00\x4D\x5A
\x00\x01\x00\x01\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6A\x6B\x6C\x6D\x6E\x6F\x70\x71\x72\x73\x74\x75\x76\x77
\x61\x62\x63\x64\x65\x66\x67\x68\x69'
HexStr=binascii.b2a_hex(ByteAry)
if((ByteAry[0] & 0xF0) == 0x40) :
payloadLength,protocol = decodeIPv4Header(ByteAry)
else :
print("The packet given is not IPv4 header")
Result :----------------------------------------------------------------
IPv4 Header ==============================================
Version : 4
Header Length : 20 (Bytes)
DSCP (Differentiated Services Code Point) : 000000 (Bin)
ECN(Explicit Congestion Notification) : 00 (Bin)
Total Length : 60 (Dec) : 60
Identification : 0x5887 (Hex), 22663 (Dec)
flags : 00 (Bin)
Fragment Offset : 0 (Dec)
Time To Live (TTL) : 128 (Dec)
Protocol : 1 (Dec) : ICMP
Header Checksum : 0x5eaa (Hex)
Source : 192.168.1.31
Destination : 192.168.1.32
