Presence Notify in RCS

Presence in RCS represents a user's service availability, communication capability, and willingness to communicate. The presence notification procedure lets a watcher learn another user's state through SIP SUBSCRIBE and NOTIFY signaling, with the actual presence state carried in an XML body such as PIDF.

Presence notification is important for RCS because a UE may need to know whether the other party supports a target RCS service before starting chat, file transfer, or other rich communication features. If the UE cannot obtain usable presence information, it may fall back to a non-RCS service or show a service failure to the user.

Presence Notify Overview
Presence Notification Flow
SUBSCRIBE Message Clip
NOTIFY Message Clip
Presence XML Clip
Failure and Fallback Cases
Reference

Presence Notify Overview

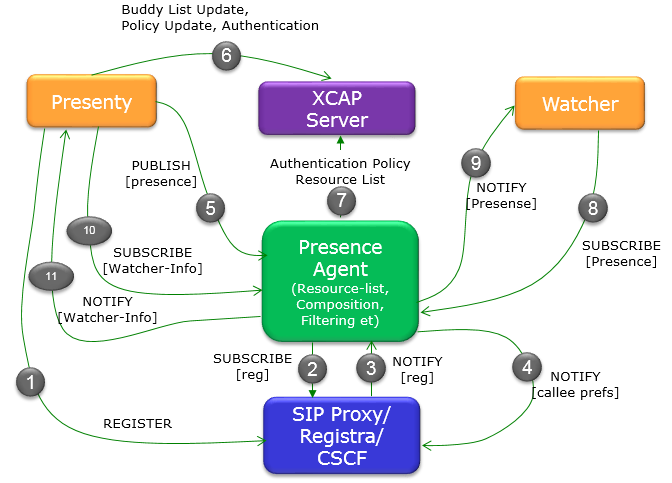

There are several components involved in presence subscription and notification. The watcher requests presence information, the presentity owns the state being watched, and the presence agent or server accepts the subscription and sends notifications. The following diagram shows the overall interaction between these entities, reillustrated from Reference [1].

Presence Notification Flow

The notification flow can be understood as three related procedures. First, the UE registers and may expose basic RCS capability. Second, an RCS-capable UE can publish its own capability or presence state to the presence agent. Third, another UE can subscribe to that presence state and receive NOTIFY messages when the state is available or changes.

Step 1: Registration and Capability Availability

Even when a UE does not support full RCS presence, initial IMS registration normally still occurs. The REGISTER procedure can include RCS-related capability information so that the network can understand which services the UE may support. See the REGISTER capability example in UE Capability Information in REGISTER.

Step 2: Capability Publication

If the UE supports RCS presence, it can publish its own service capability or presence state toward the presence agent. This allows the presence server to maintain current state for later watcher requests. See the PUBLISH capability example in UE Capability Information in PUBLISH.

Step 3: Subscription and Notification

When a user starts an RCS action and the UE does not already have presence information for the other party, the UE subscribes to the presence event package. The presence server then sends NOTIFY with the current presence state. See the NOTIFY capability example in UE Capability Information in NOTIFY.

SUBSCRIBE Message Clip

The following clip shows a watcher subscribing to another user's RCS presence information.

SUBSCRIBE sip:user2@example.com SIP/2.0

Via: SIP/2.0/UDP ue1.example.com;branch=z9hG4bK-rcs-pres-001

From: <sip:user1@example.com>;tag=watcher01

To: <sip:user2@example.com>

Call-ID: rcs-pres-001@example.com

CSeq: 1 SUBSCRIBE

Contact: <sip:user1@ue1.example.com>

Event: presence

Accept: application/pidf+xml

Expires: 3600

In this SUBSCRIBE clip, Request-URI identifies the presentity being queried, From identifies the watcher, To identifies the target user, Event selects the presence event package, Accept requests a PIDF XML response body, and Expires requests the subscription duration.

NOTIFY Message Clip

The following clip shows the presence server notifying the watcher with the current presence state.

NOTIFY sip:user1@ue1.example.com SIP/2.0

Via: SIP/2.0/UDP presence.example.com;branch=z9hG4bK-rcs-pres-002

From: <sip:user2@example.com>;tag=presentity01

To: <sip:user1@example.com>;tag=watcher01

Call-ID: rcs-pres-001@example.com

CSeq: 1 NOTIFY

Event: presence

Subscription-State: active;expires=3580

Content-Type: application/pidf+xml

In this NOTIFY clip, Request-URI points to the watcher contact, Call-ID correlates the NOTIFY with the subscription dialog, CSeq identifies the NOTIFY transaction, Event confirms the presence package, Subscription-State reports active or terminated status, and Content-Type identifies the presence XML body.

Presence XML Clip

The NOTIFY body carries the actual presence information. The following simplified PIDF clip shows the presentity, service tuple, availability state, contact URI, and timestamp.

<contact>sip:user2@device.example.com</contact>

</tuple>

</presence>

In this PIDF clip, presence entity identifies the user whose state is reported, tuple id identifies the reported service entry, basic indicates open or closed availability, contact provides the reachable SIP URI, and timestamp records when the presence state was generated.

Failure and Fallback Cases

If the UE cannot obtain valid presence information for the other party, it may fall back to a non-RCS service or display a failure indication. Typical failure points include missing NOTIFY, terminated subscription state, unsupported Content-Type, malformed PIDF XML, stale tuple data, or a presence document that does not include the service capability required by the attempted RCS operation.

For troubleshooting, check the SIP dialog first: SUBSCRIBE and NOTIFY should share the same Call-ID, Event should be presence, and Subscription-State should be active unless the service intentionally terminates the subscription. Then check the XML body and confirm that the reported presentity and tuple match the target service.

Reference

[1] Presence Tutorial - Columbia University

[2] RFC 3856 : A Presence Event Package for the Session Initiation Protocol (SIP)

[3] RFC 3265 : Session Initiation Protocol (SIP)-Specific Event Notification

[4] RFC 3857 : A Watcher Information Event Template-Package for the Session Initiation Protocol (SIP)
